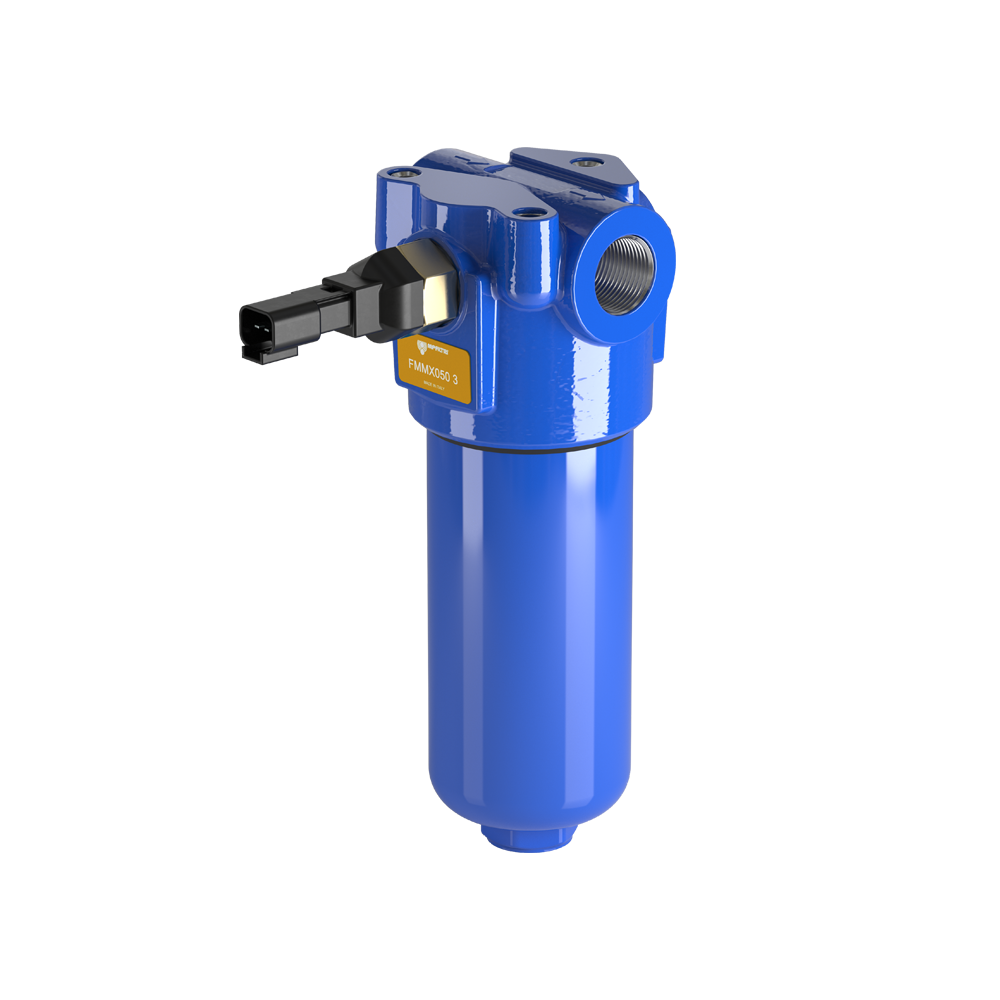

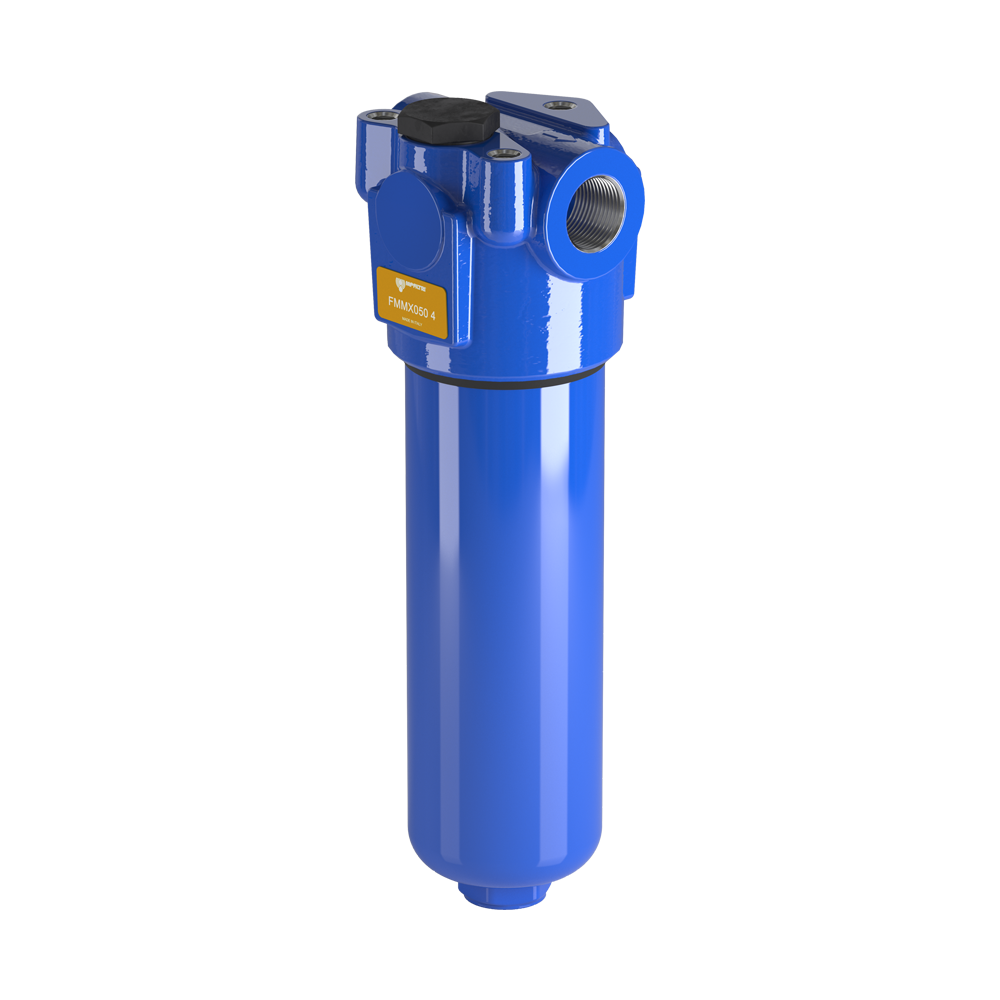

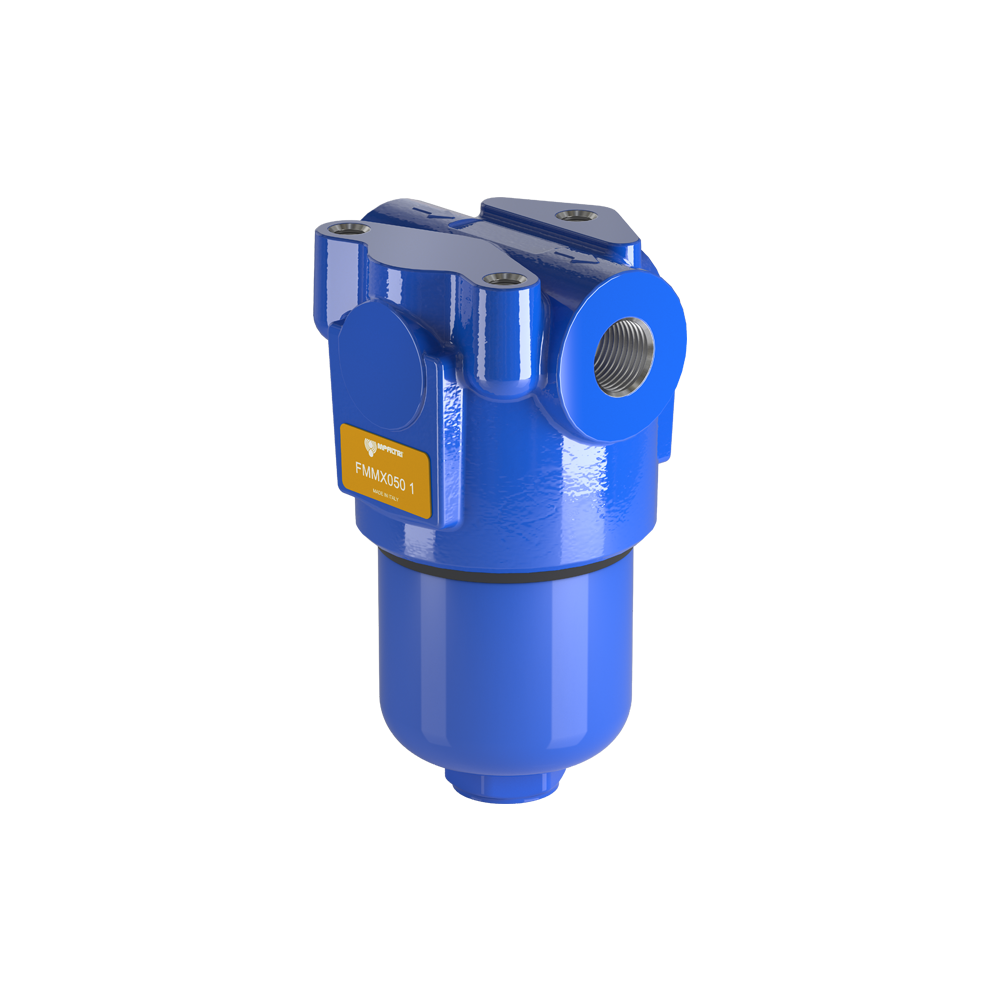

In-line High pressure filter for mobile applications
In-line high pressure stainless steel filter with autoclave mounting options
In-line high pressure filter. Working pressure up to 420 bar (6092 psi), flow rates up to 250 l/min (66 gpm), threaded connections up to 1 1/4” BSP/NPT/SAE/ISO 6149.
They can be mounted in potentially explosive areas as they are certified ATEX2014/34/EU - Category 2G - Areas 1 - 2 certified
and U.K. Regulation S.I. 2016 No. 1107.
In-line high pressure filter with compact dimensions and reduced weight, particularly suitable for mobile equipment applications and agricultural machines.
| Ambient temperature |
Max fluid temperature |
Temperature class |
Max surface temperature |
| 15 °C ÷ +80 °C | +80 °C | T6 | T85 °C |
II 3G Ex h IIC T6... T4 Gc X| Ambient temperature |
Max fluid temperature |
Temperature class |
Max surface temperature |
| -15 °C ÷ +80 °C | +80 °C | T6 | T85 °C |
| -15 °C ÷ +95 °C | +95 °C | T5 | T100 °C |
| -15 °C ÷ +110 °C | +110 °C | T4 | T115 °C |
