RETURN FILTERS

Return filters perform the task of filtering fluid and preventing particles from entering the system externally or from internal wear and tear of components. These filters are normally mounted to the reservoir fully or semi-immersed. The position of the filters ensures returning fluid takes place in an immersed condition in all operating conditions, preventing the creation of foam and vortexes in the tank that can cause aeration and cavitation in pumps. For convenience the bowl and filter element can be removed from the housing to service without disconnecting the filter from the rest of the system.

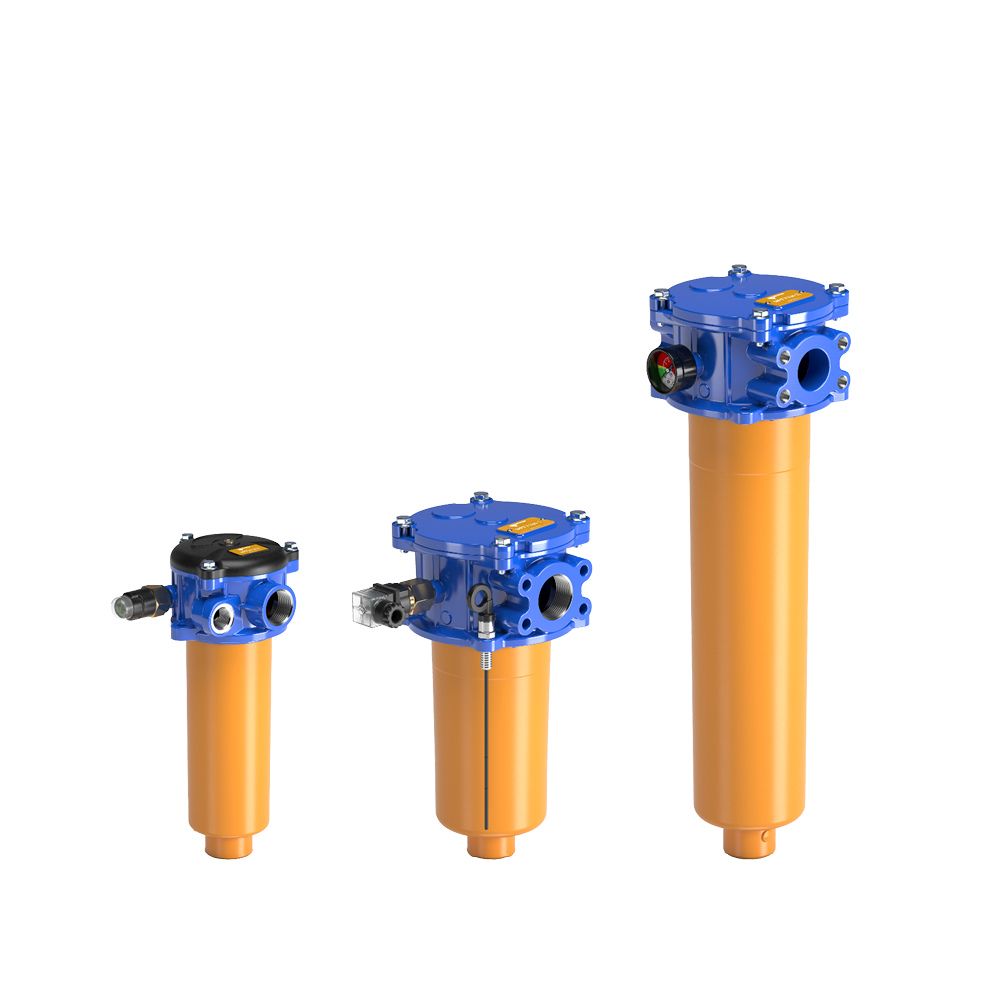

MPFX

Tank top return filter


MYclean Design

Pmax 8 bar, 116 psi
Qmax 900 l/m, 238 gpm

Industry standard tank mounted filter suitable for all mineral oil and water glycol applications

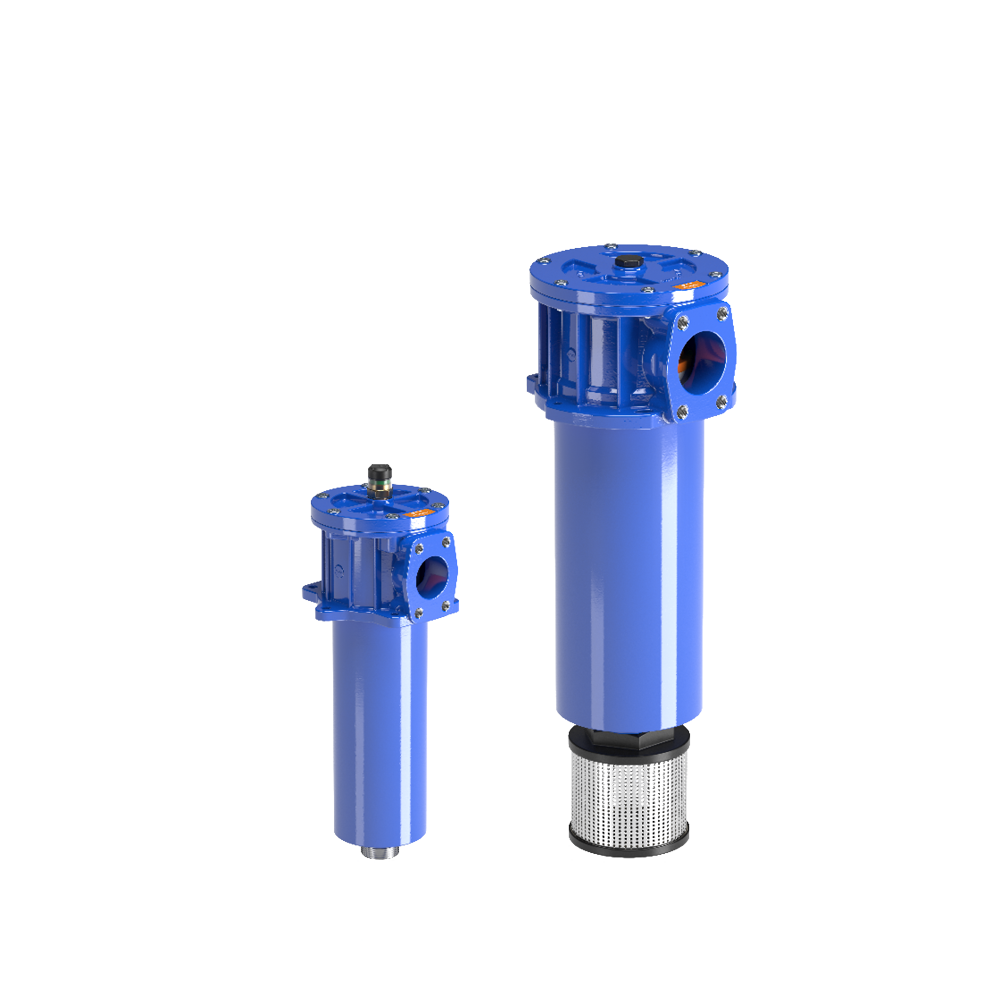

MPLX

Heavy duty tank top filter


Pall 8420 & 8520 interchange

Pmax 10 bar, 145 psi
Qmax 1800 l/m, 476 gpm

Large industrial applications, in replacement PALL 8420 & 8520

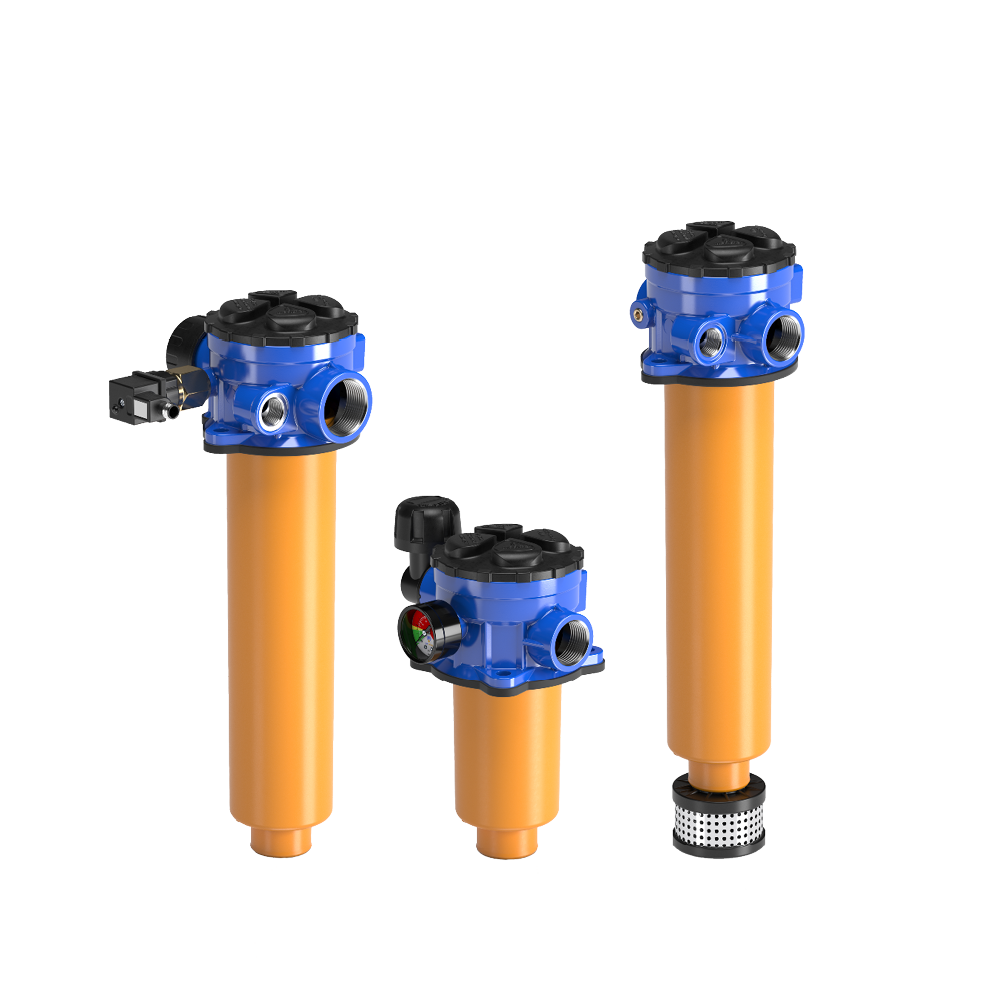

MPTX

Tank top return filter with air breather


MYclean Design

Pmax 8 bar, 116 psi
Qmax 300 l/m, 79 gpm

Suitable for small mobile and lower flow applications where space is a premium

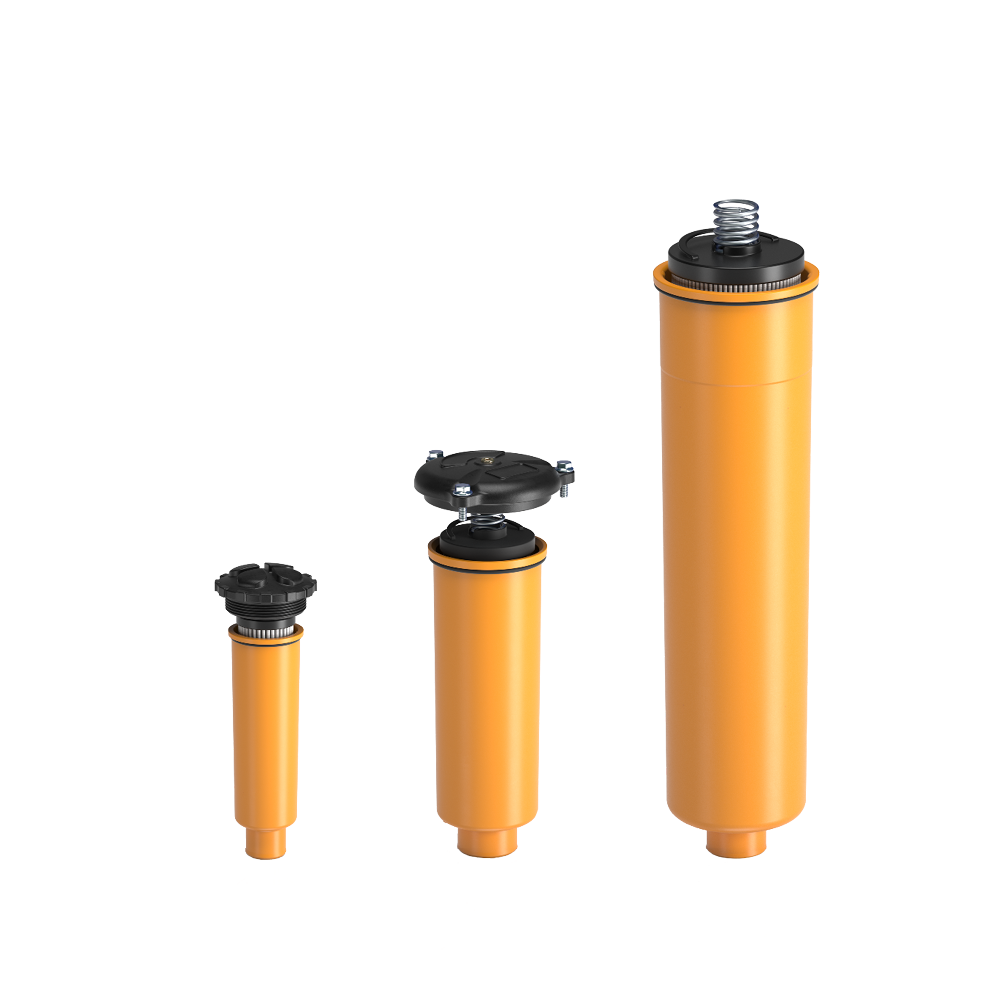

MFBX

In-tank filter


Filter bowl and element assembly, MYclean Design

Pmax 8 bar, 116 psi
Qmax 700 l/m, 185 gpm

Industry standard filter for mounting flush to the tank top

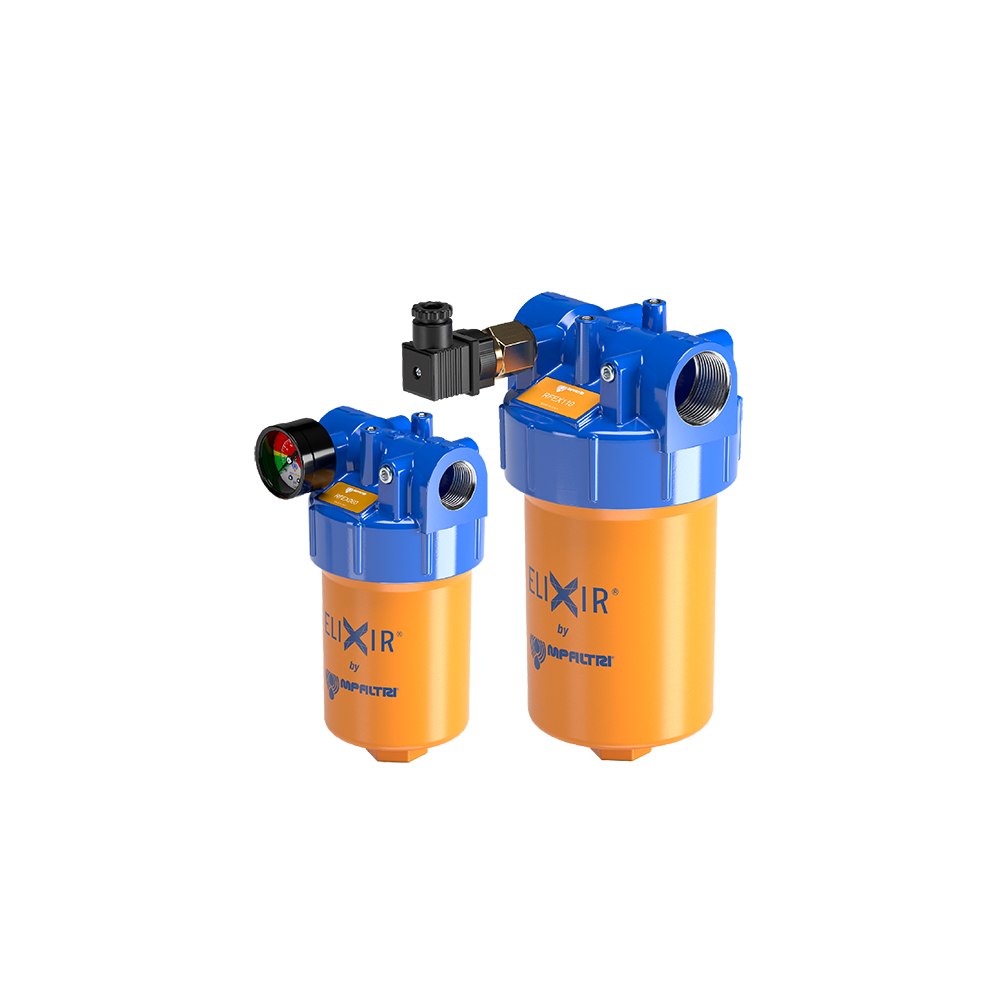

RFEX ELIXIR® SERIES

NEW in line filter


Return

Pmax 16 bar, 232 psi
Qmax 260 l/m, 69 gpm

A new concept in spin-on type filtration; versatile, low cost and kinder to the environment

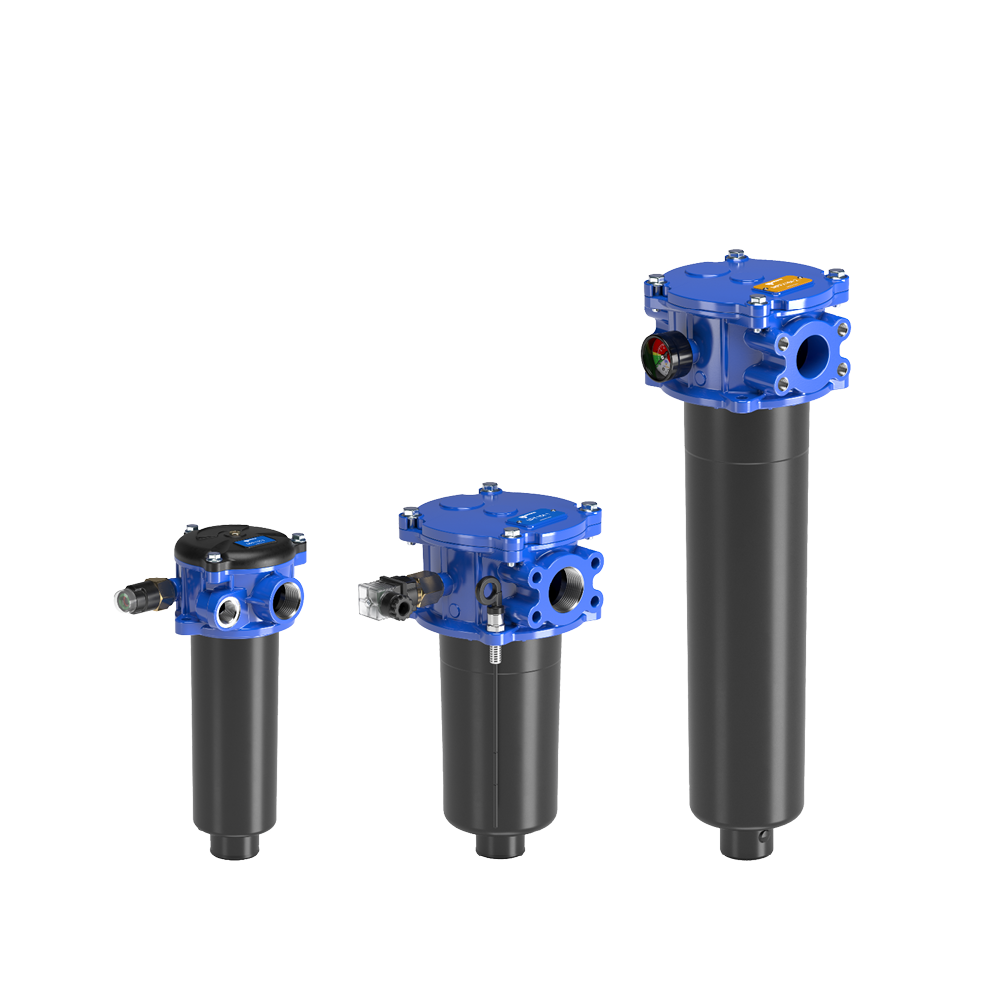

MPF

Tank top return filter


Pmax 8 bar, 116 psi
Qmax 900 l/m, 238 gpm

Industry standard tank mounted filter suitable for all mineral oil and water glycol applications

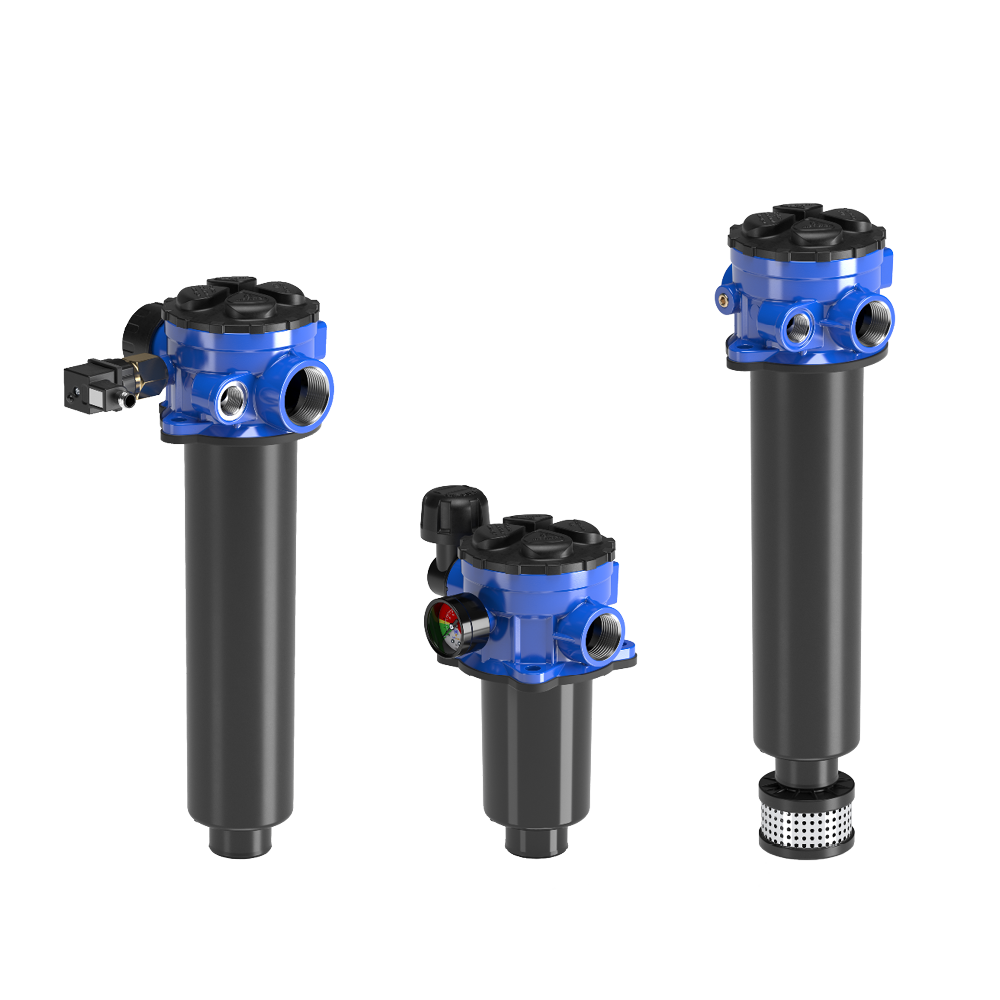

MPT

Tank top return filter with air breather


Pmax 8 bar, 116 psi
Qmax 300 l/m, 79 gpm

Suitable for small mobile and lower flow applications where space is a premium

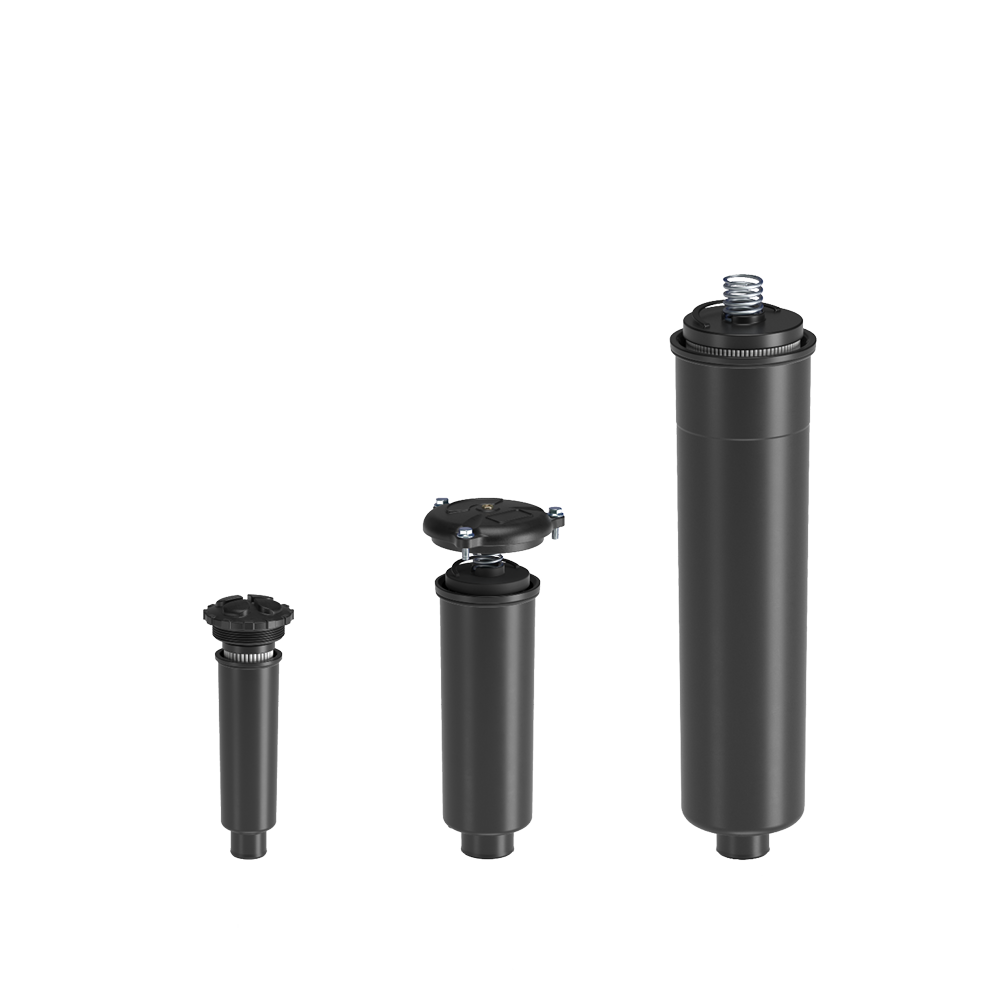

MFB

In-tank filter


Filter bowl and element assembly

Pmax 8 bar, 116 psi
Qmax 700 l/m, 185 gpm

Industry standard filter for mounting flush to the tank top

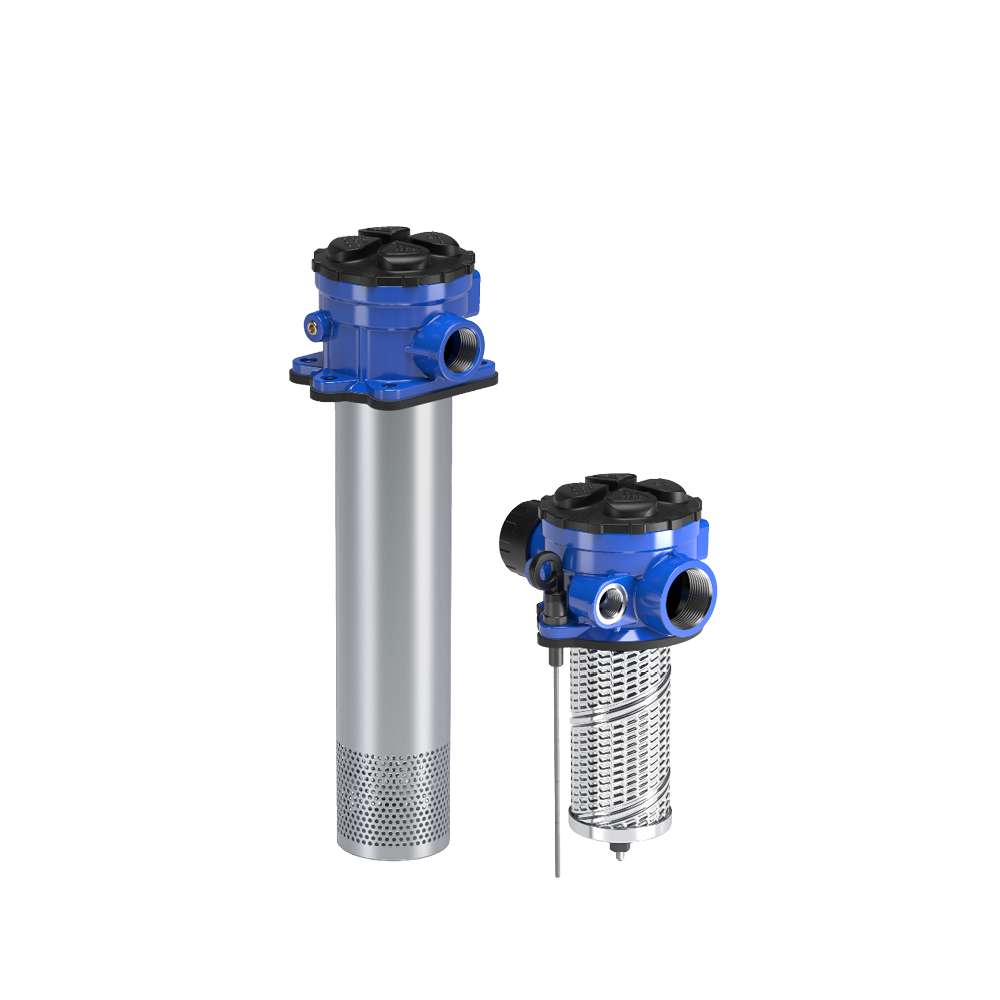

MPH

High flow rate filter for heavy duty industrial applications


With integral air breather

Pmax 10 bar, 145 psi
Qmax 3500 l/m, 925 gpm

Large industrial applications suitable for all mineral oil and water glycol applications

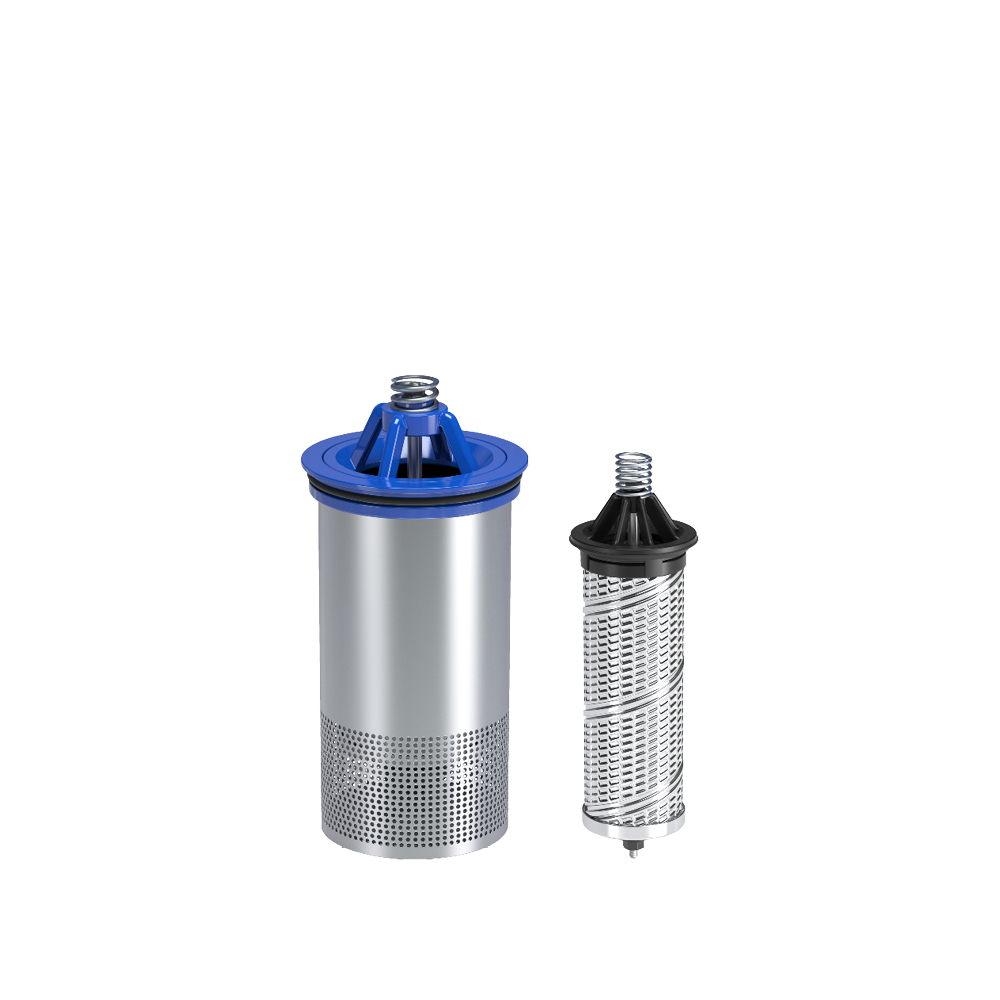

MPI

Heavy duty industrial applications in-tank filter


Pmax 10 bar, 145 psi
Qmax 3500 l/m, 925 gpm

Large industrial applications suitable for all mineral oil and water glycol applications

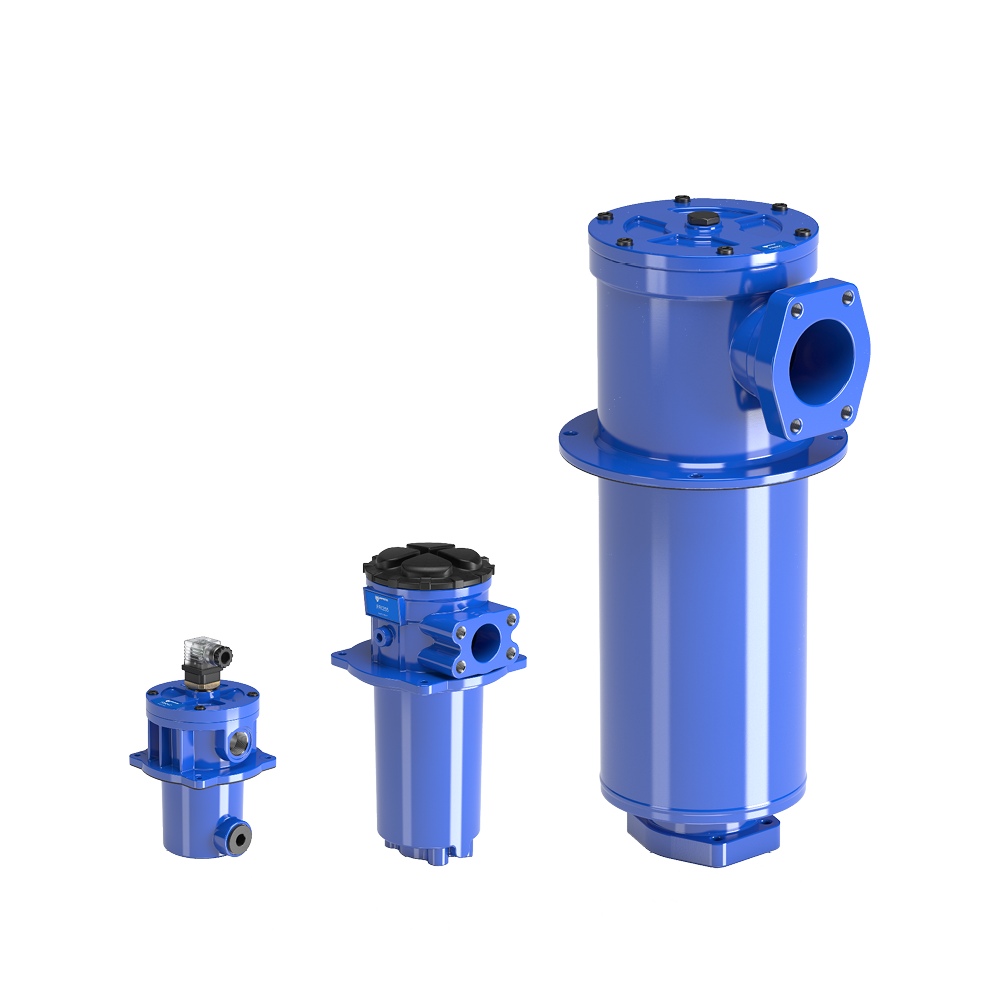

FRI

Heavy duty in-line or tank top mount filter


Pmax 20 bar, 290 psi
Qmax 2500 l/m, 660 gpm

Large industrial applications with higher return line pressure and large flow requirements

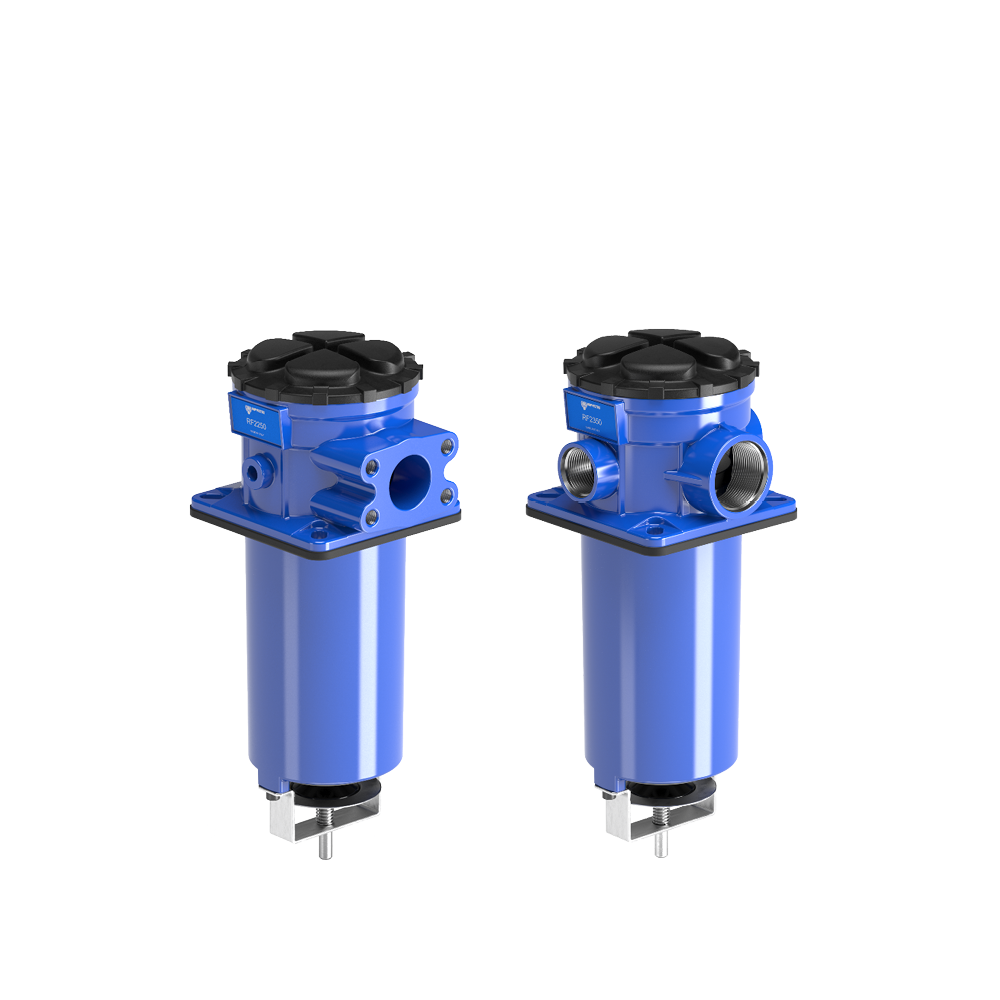

RF2

Side-tank mounted filter with shut-off valve


Pmax 20 bar, 290 psi
Qmax 615 l/m, 162 gpm

Suitable for smaller mobile and static applications where tank top maintenance is restricted
