LMP 400 - 401 - 430 - 431

In-line filter with drain plug (LMP 400-401) and breather plug for upside down mounting (LMP 430-431). Working pressure up to 60 bar (870 psi), flow rates up to 740 l/min (195 gpm), threaded connections from 1 1/2” and 2” BSP/NPT/SAE and SAE code 61 flanged connections 2” and 2 1/2”.

FILTER SIZING    3D DOWNLOAD   TECHNICAL BROCHURE
  • FEATURES & BENEFITS
  • TECHNICAL DATA
  • LITERATURE
  • VIDEO
In-line filters for high viscosity and high flow rate applications with a wide range of element media options, including water removal, particularly suited for off-line filtration circuits due to high dirt holding capacity. Upside-down design available in length 5 & 6 offers simple element changeout and minimal oil spillage.
CONNECTIONS
LMP400_401_430_431
WEIGHTS AND VOLUMES
LMP400_401_430_431
CATALOGUES
Low & Medium Pressure Catalogue

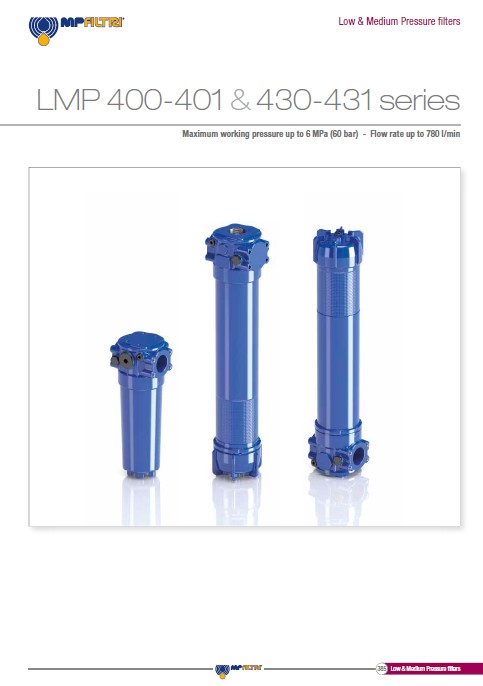

LMP400-401-430-431 low and medium pressure

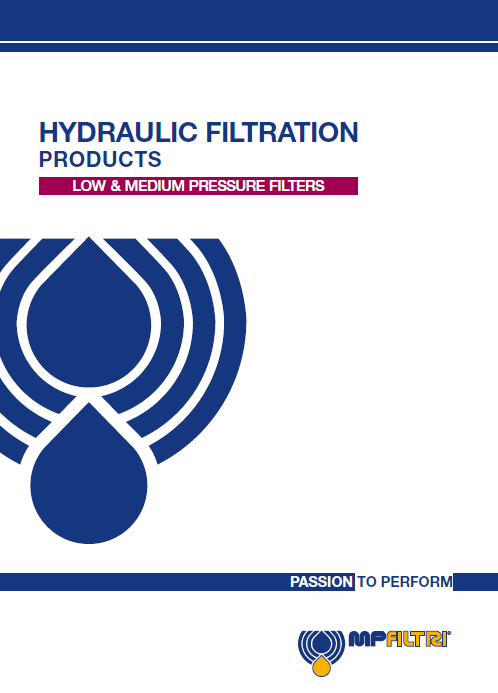

Hydraulic Filtration Catalogue
Low medium pressure accessories
BROCHURES

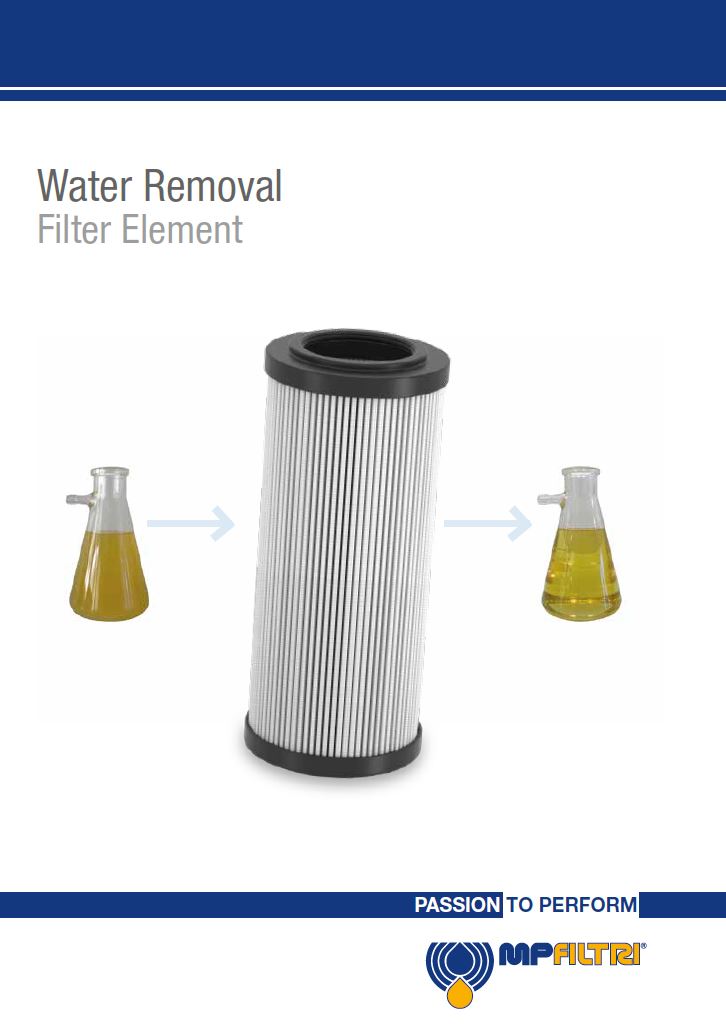

Water Removal brochure
FILTER ELEMENT
Hydraulic Filtration brochure
Product range brochure
