ACMU

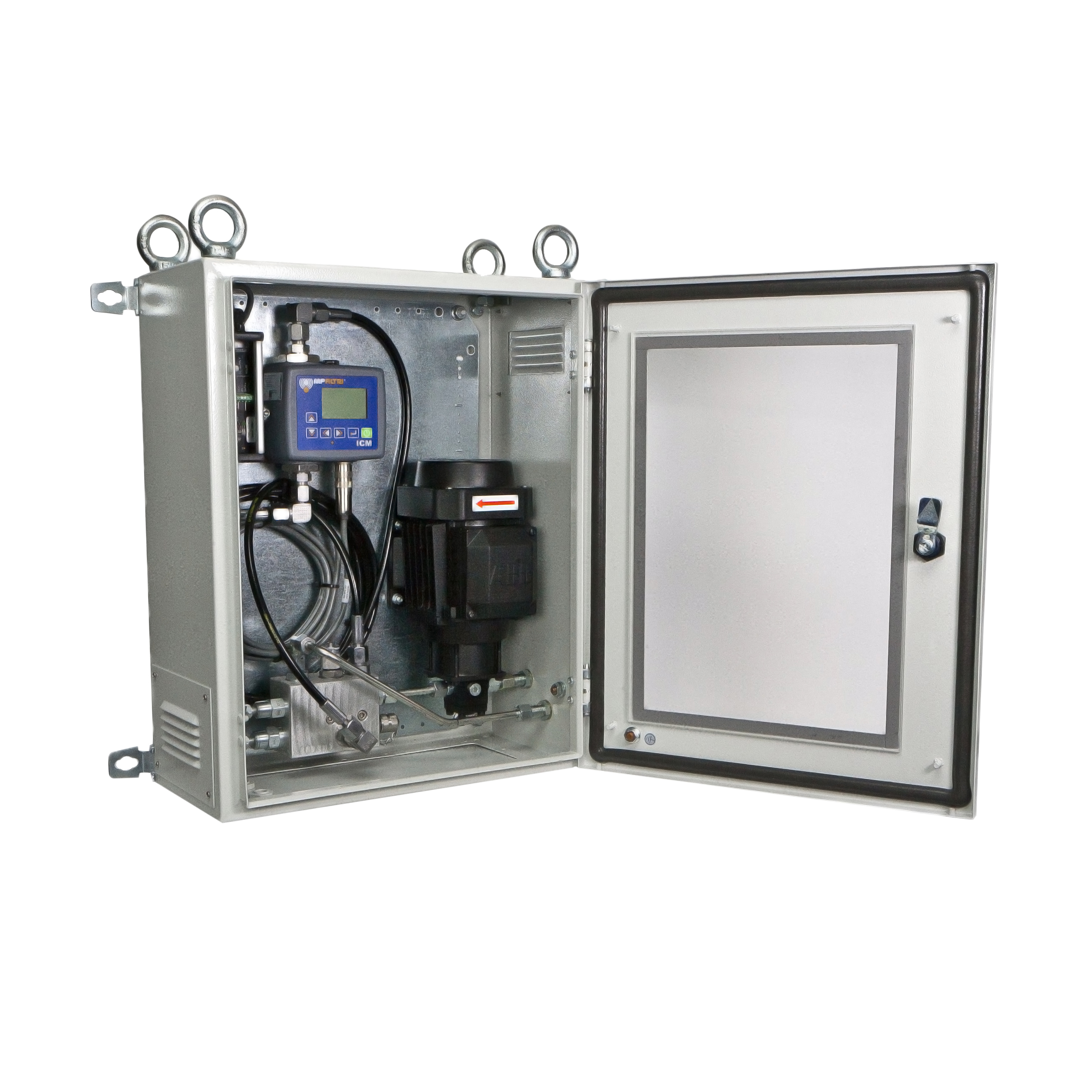

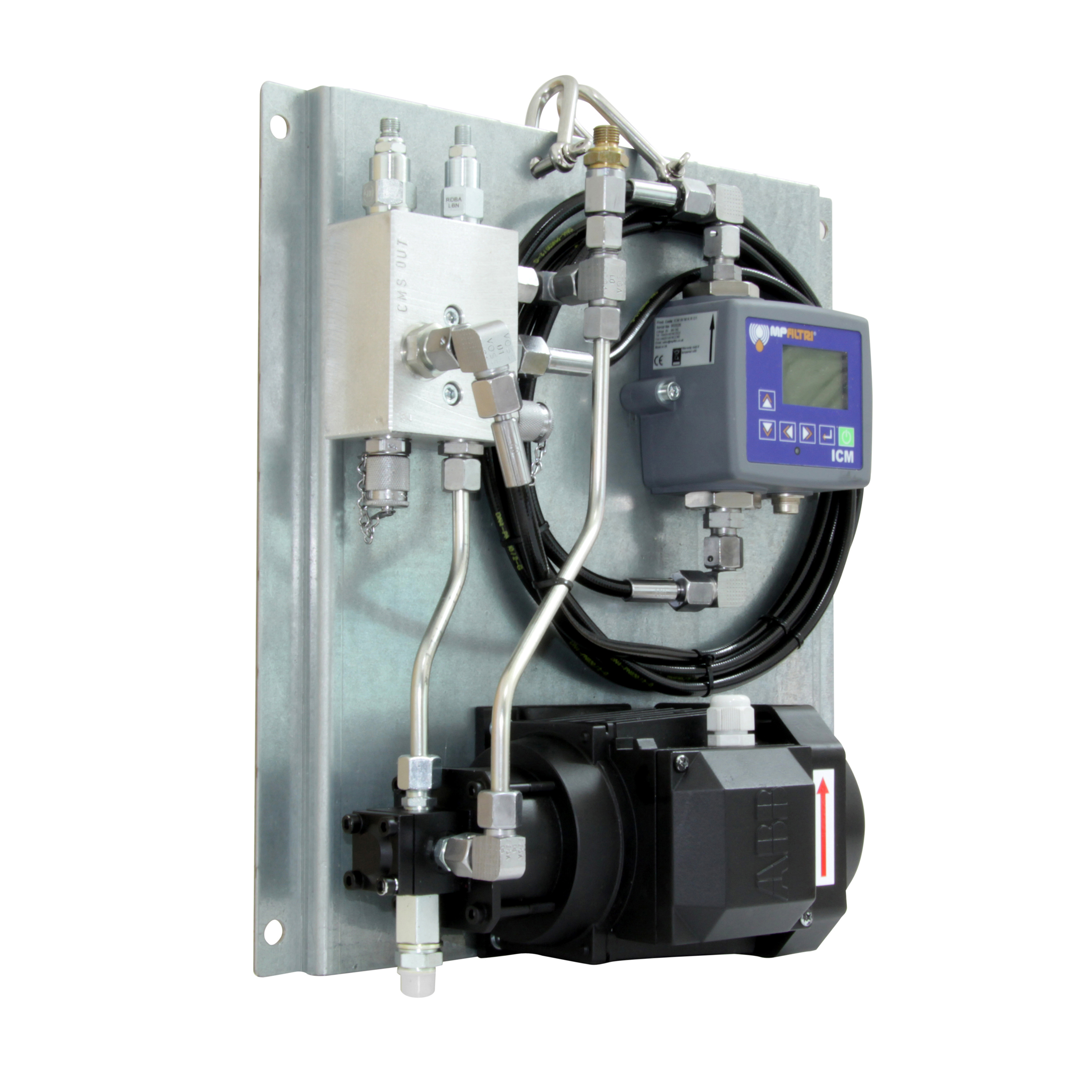

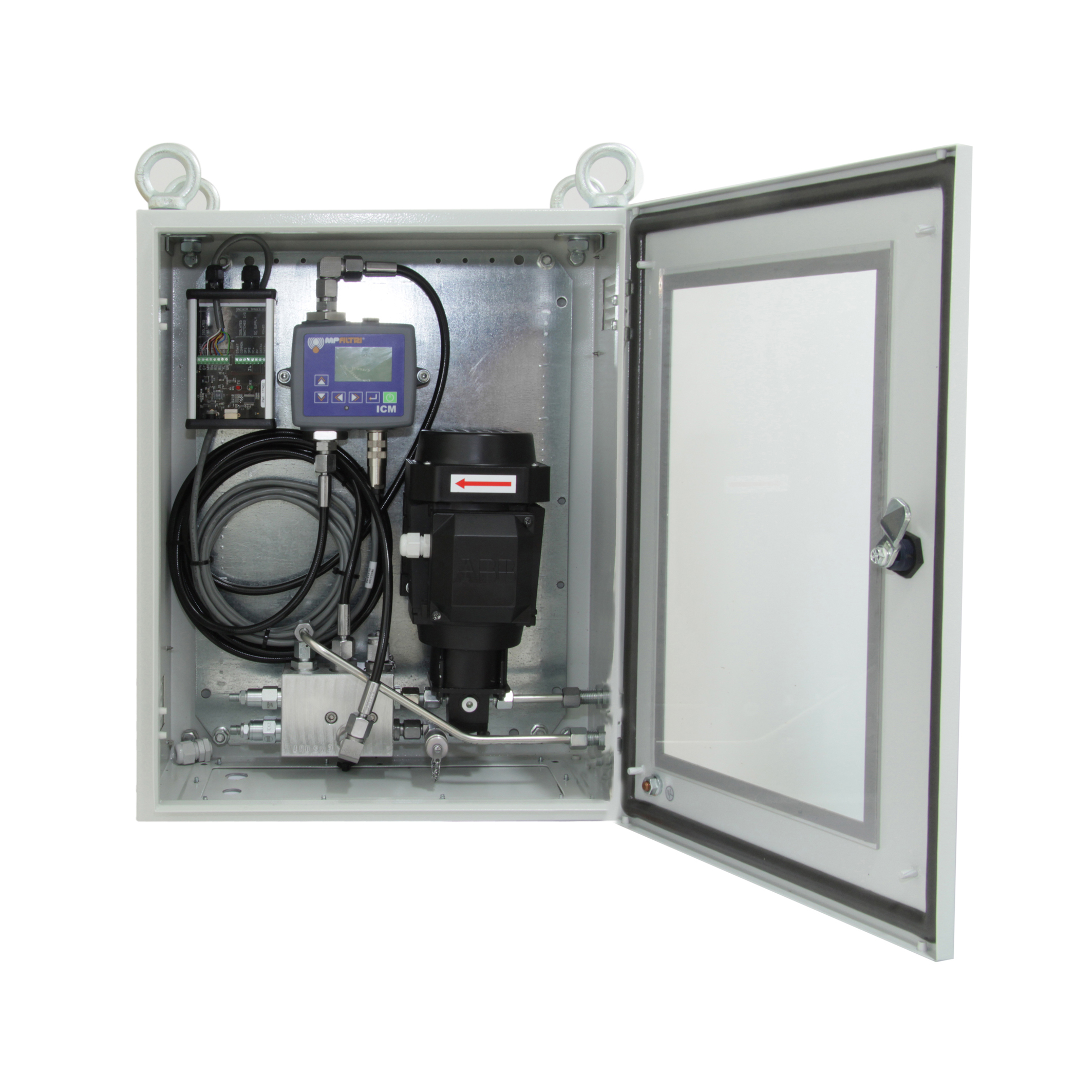

Incorporating the ICM, hydraulic pump and valve circuit, the ACMU is specifically designed for viscous/ lubrication systems, where aeration is present.

TECHNICAL BROCHURE
  • FEATURES & BENEFITS
  • TECHNICAL DATA
  • LITERATURE
• Self priming particle counting via integrated pump and manifold design
• Variants for non pressurised/ pressurised systems of lube oil/ gear box applications
• Aeration suppression, that allows for improved contamination monitoring
• Live real time monitoring
• Specifically designed for wind/tidal/wave energy, gearbox applications, offshore & ship
  systems, lubrication & oil systems and test benches, it can be used with entrained air
  or turbulent flows, higher viscosity fluids and unpressurezed systems





Particle sizing
As ICM: >4, 6, 14, 21, 25, 38, 50, 70 μm(c) to ISO 4406:2017
Standard fluid compatibility / Corrosion resistance
Hydrocarbon based & Synthetic hydraulic fluids
Circuit flow rate
40 ml/min to 400 ml/min
Viscosity range
Max. 1000 cSt - Min. 10 cSt
Fluid temperature (Start Up)
Minimum: Viscosity dependant. Not greater than 1000 cSt
Maximum: +80 °C
Fluid temperature (Continuous)
Minimum: Viscosity dependant. Not greater than 1000 cSt
Maximum: +80 °C
Ambient temperature (Start Up)
From -40°C to +50 °C Inlet Pressure Min. Positive pressure - Max. 50 bar gauge pressure (pump option dependant) Outlet Pressure Min. Atmosphere (1013mbar at sea level) - Max. 3 bar (gauge pressure)
