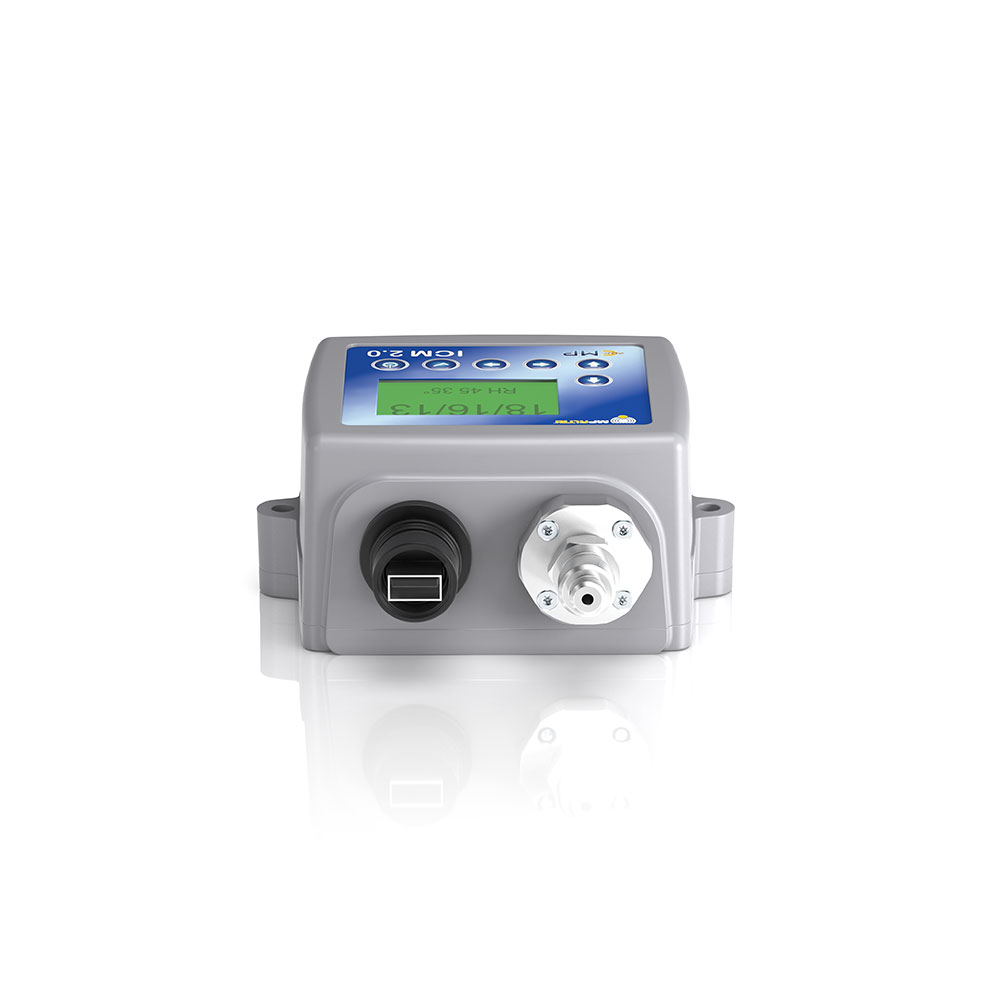

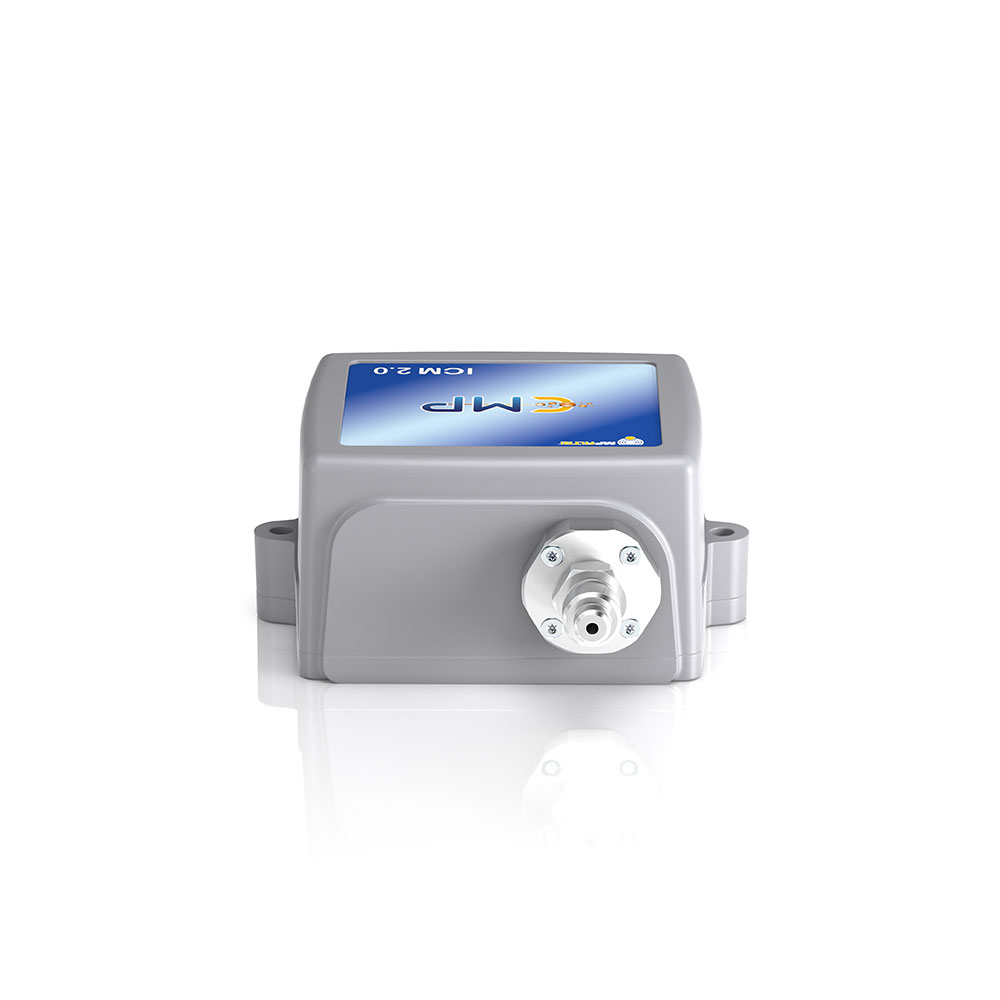

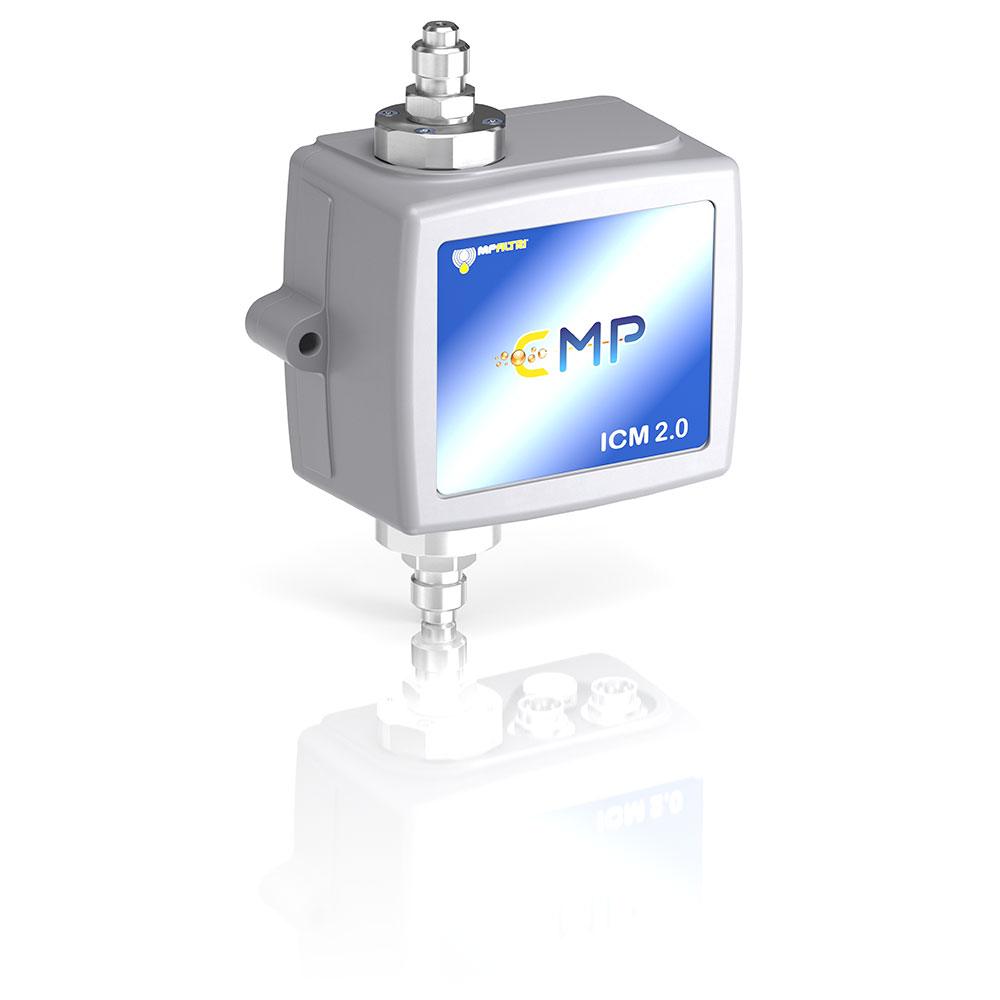

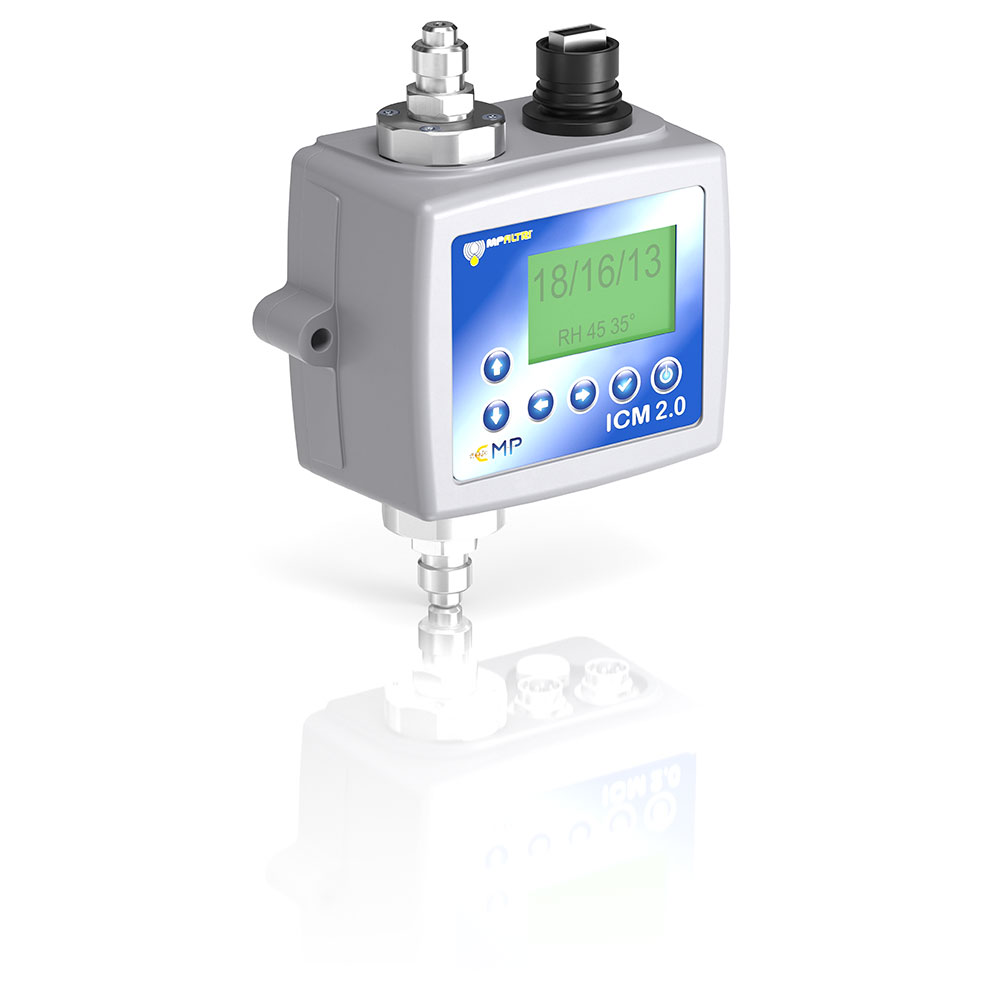

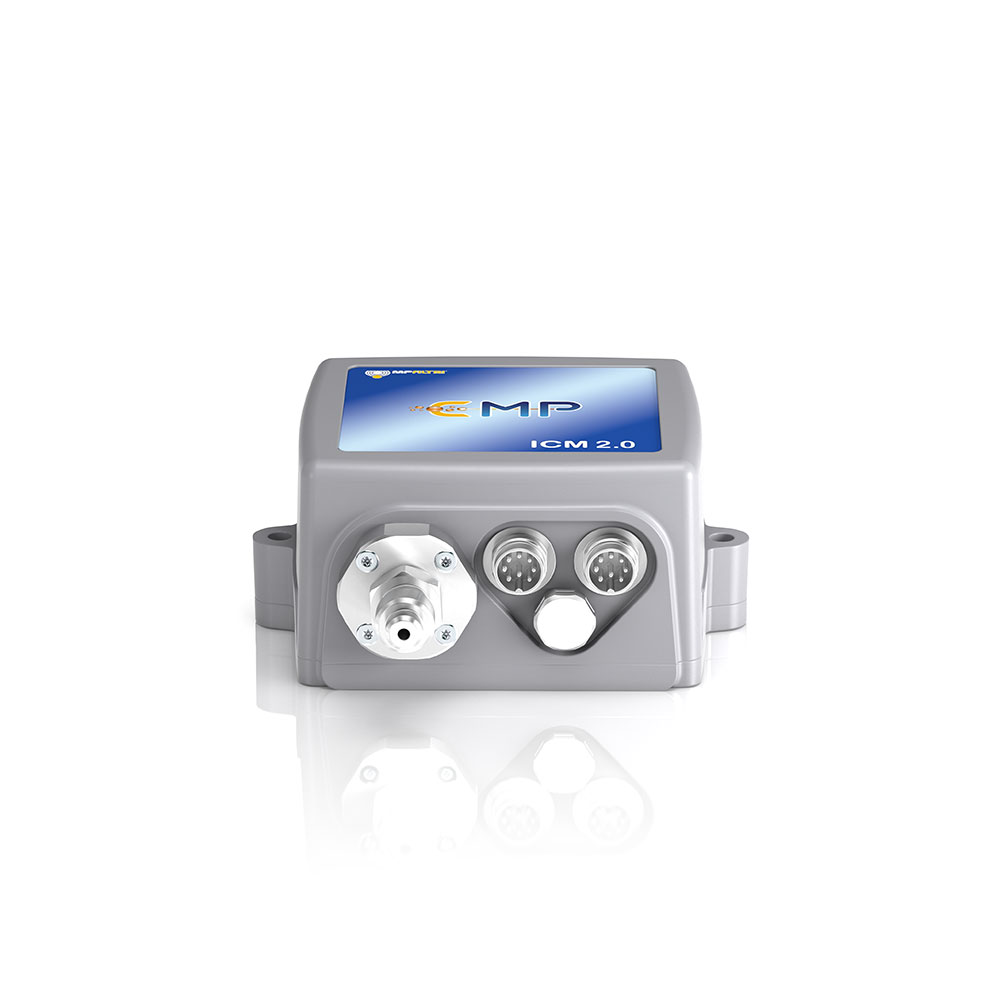

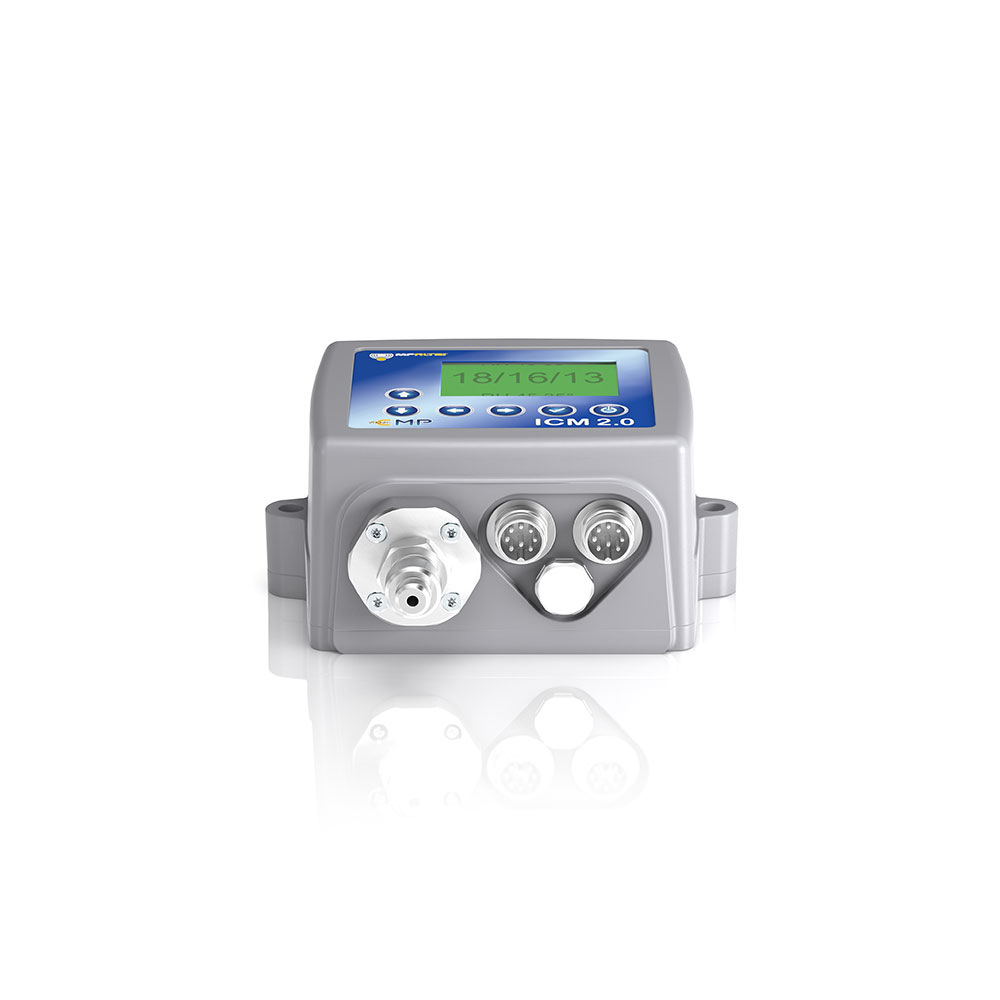

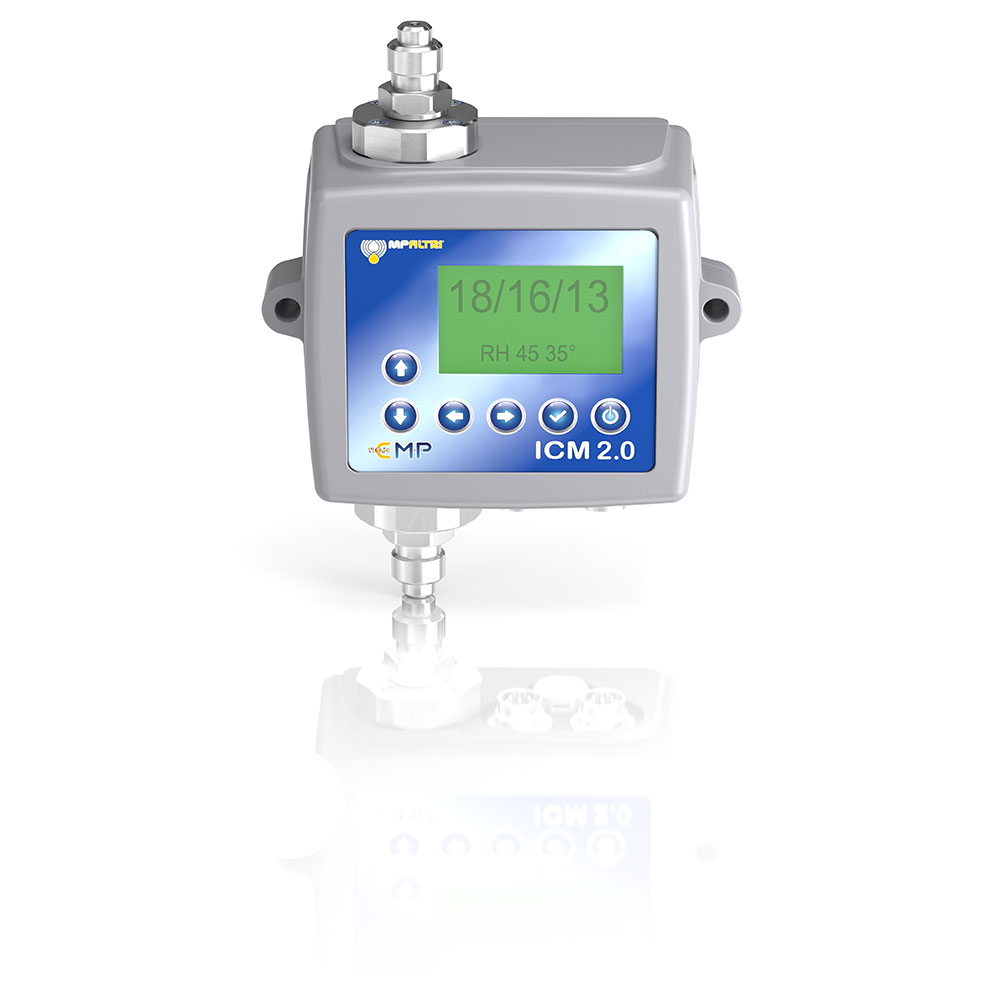

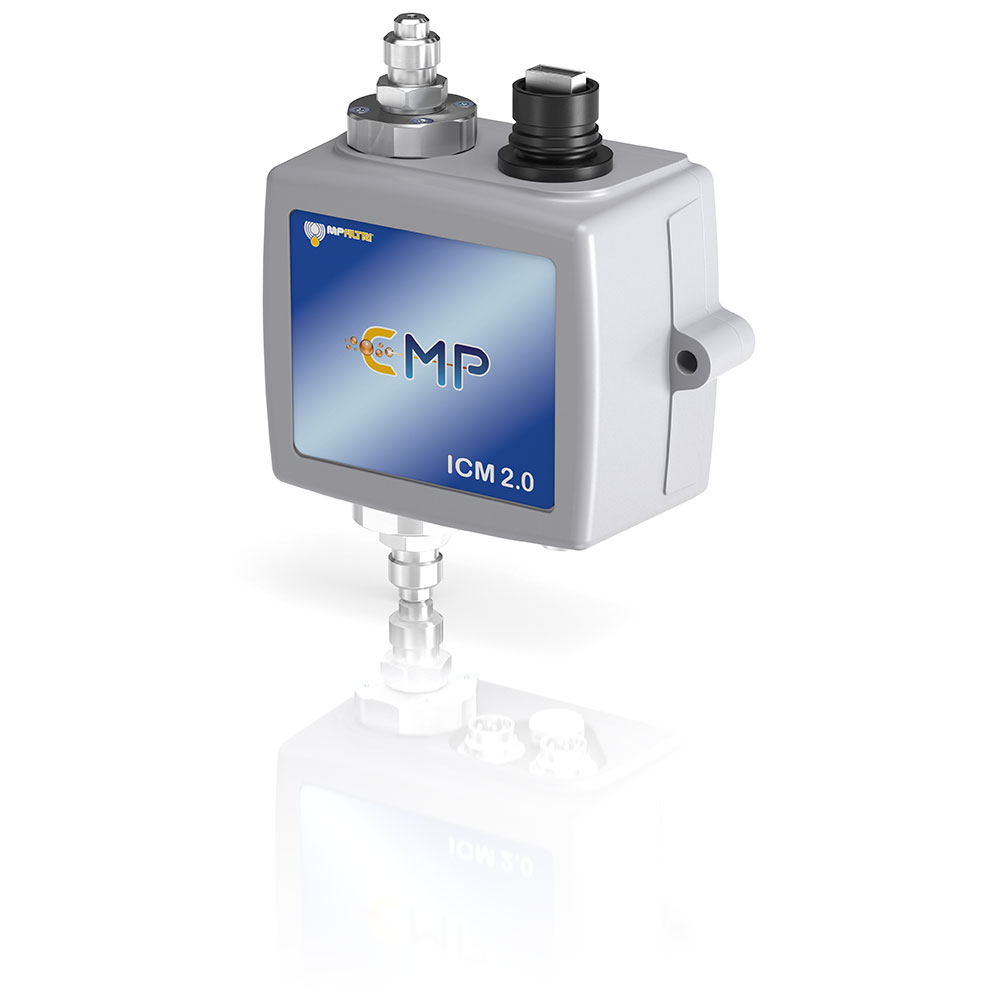

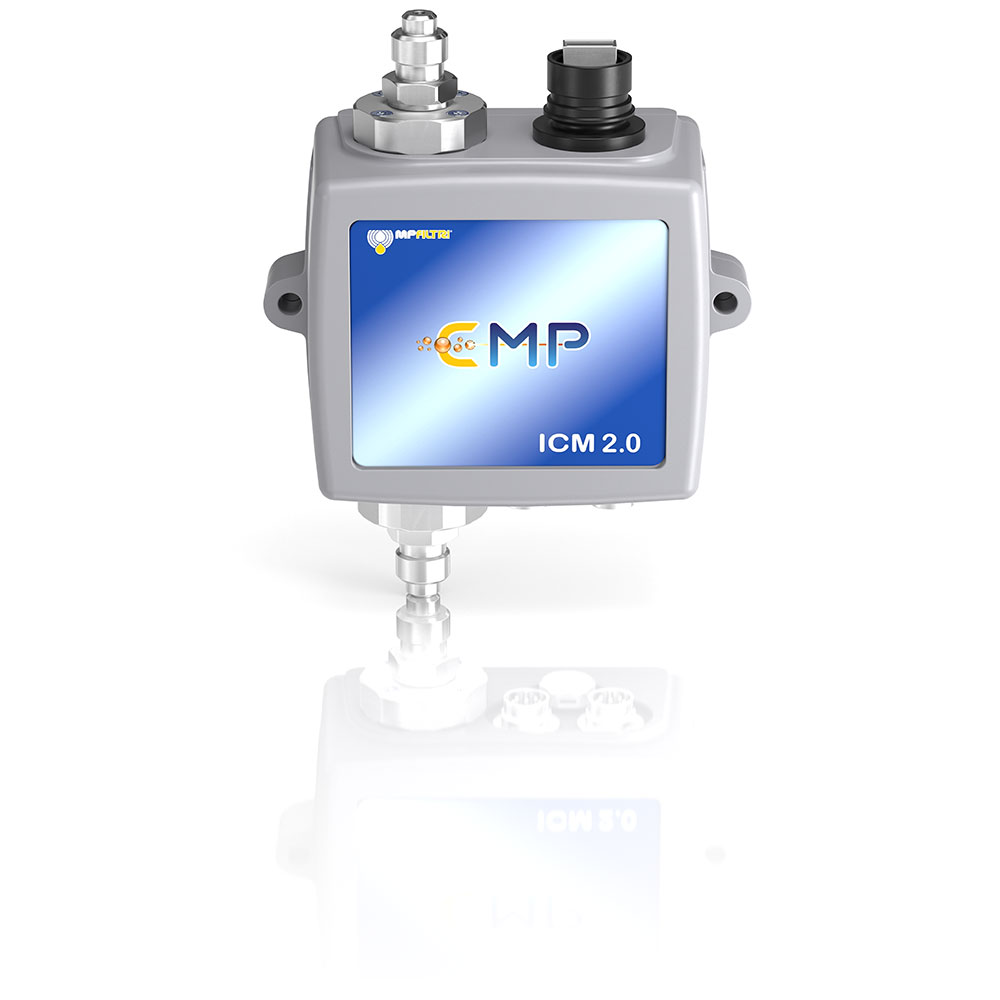

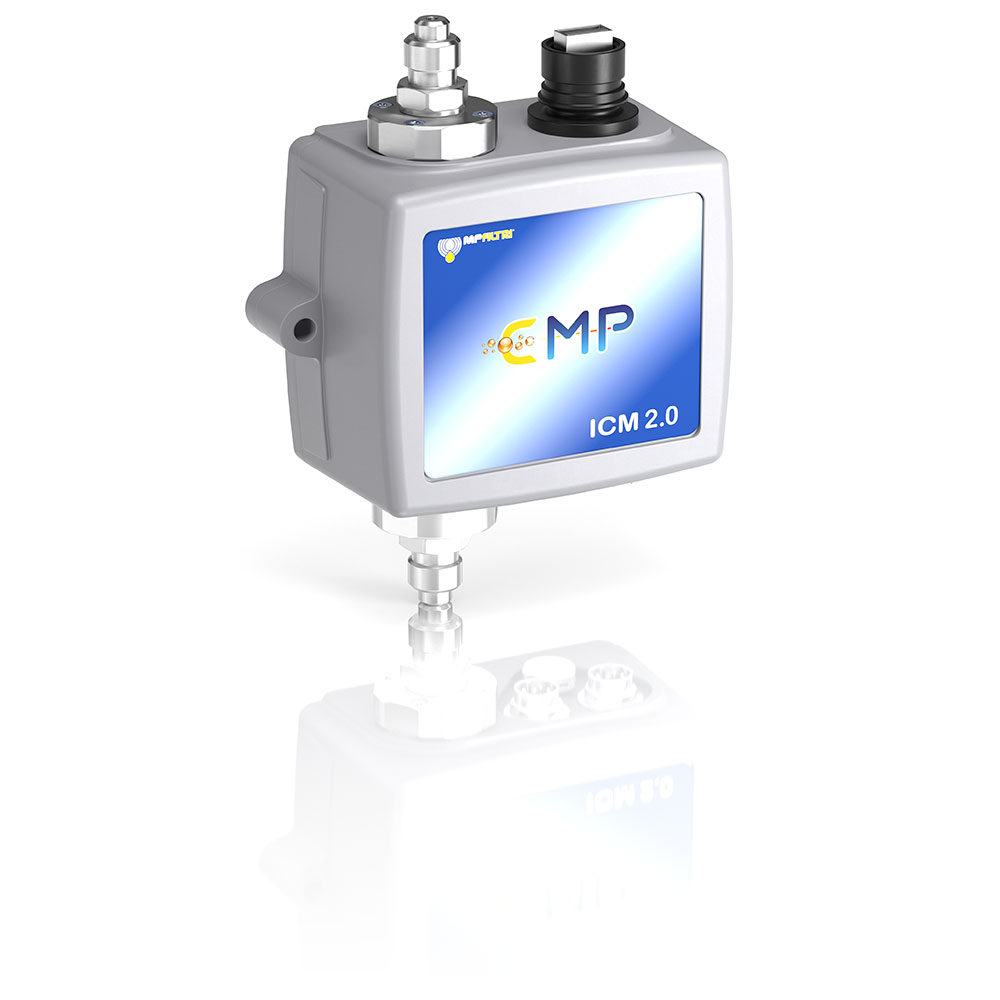

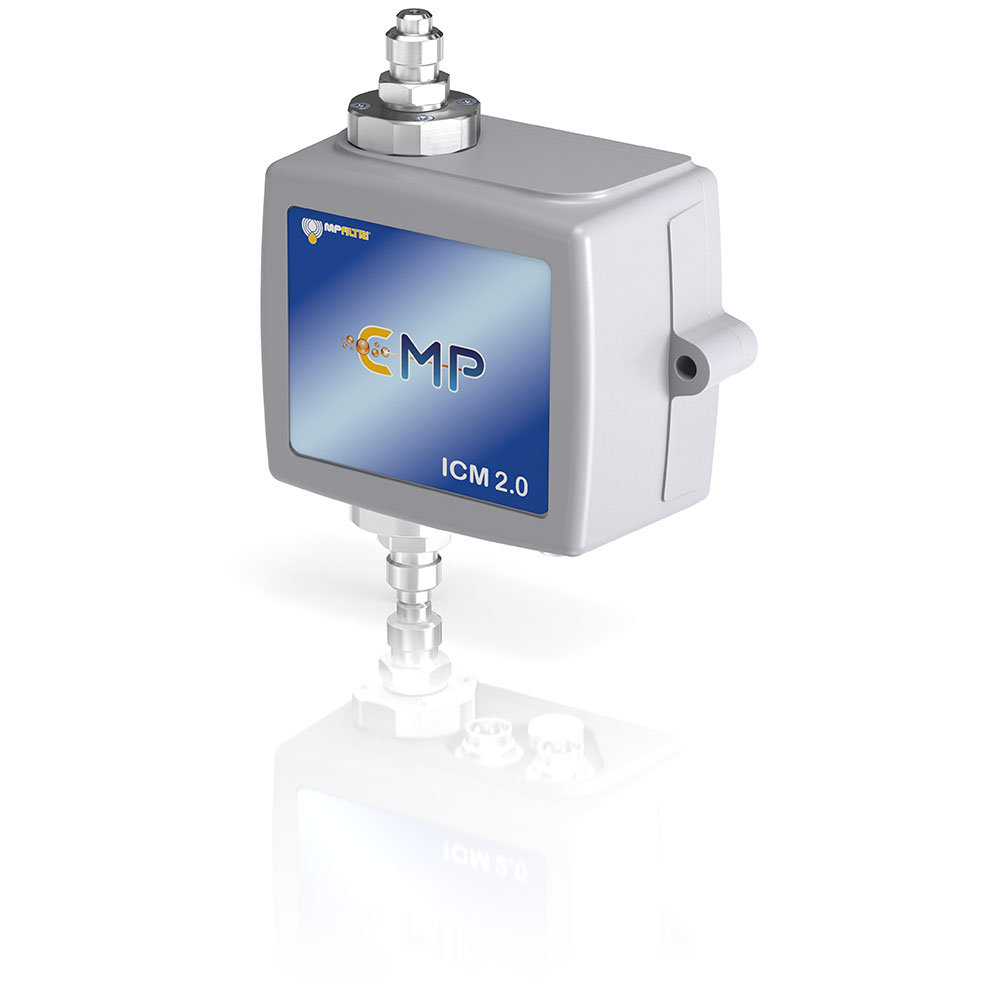

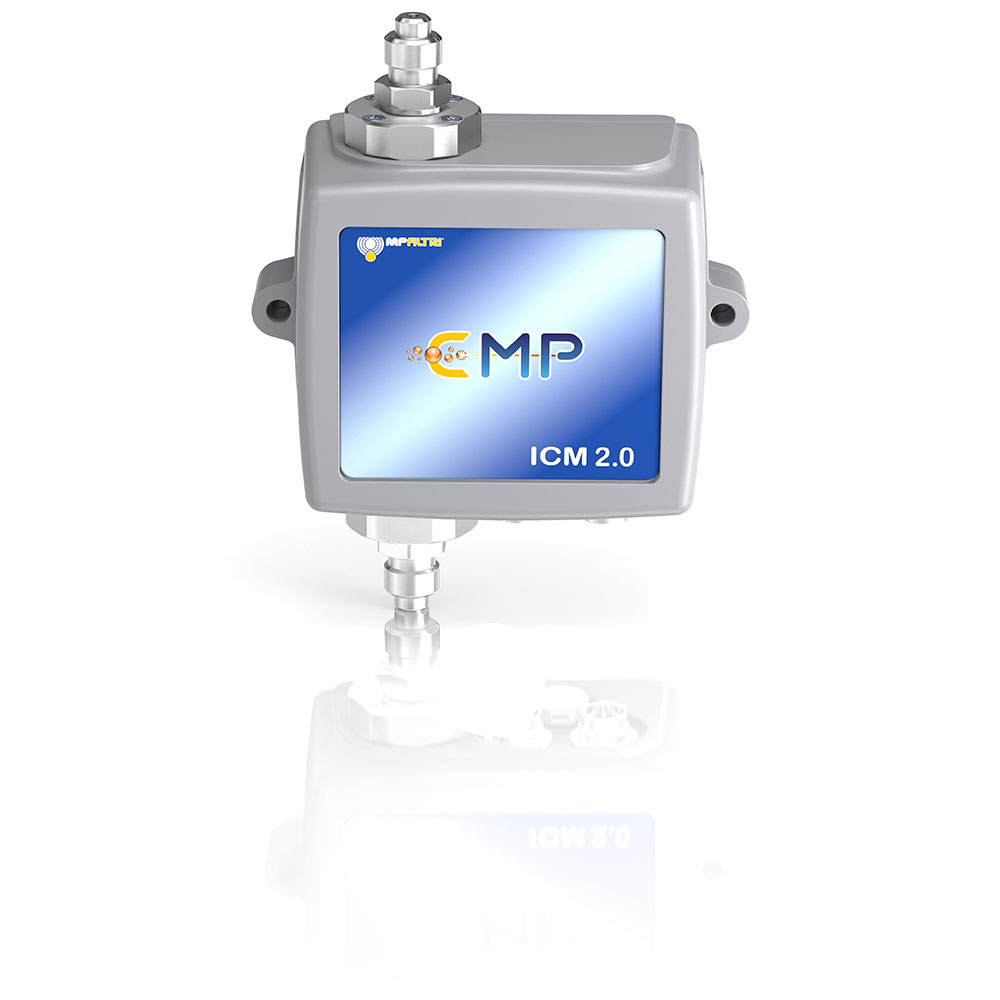

ICM 2.0

The ICM 2.0 automatically measures and displays particulate contamination, moisture and temperature levels in various hydraulic fluids. It is designed specifically to be mounted directly to systems, where ongoing measurement or analysis is required, and where space and costs are limited. The ICM can be used as a standalone product or can be controlled by external PC, PLC or the ICM: RDU (Remote Display Unit with 3m control supplied as standard).

RECALIBRATION SERVICE    3D DOWNLOAD   TECHNICAL BROCHURE HP AND LEASING
  • FEATURES & BENEFITS
  • TECHNICAL DATA
  • LITERATURE
  • VIDEO
  • SOFTWARE
• Industry 4.0 ready live real time monitoring
• Calibrated to relevant ISO standards
• Manual, automatic and remote control flexibility
• Various communication protocols as standard
  FREE Windows based LPA View software. 8 channel contamination measurement &
  display
• Measures and displays the following international standard formats; ISO 4406,
  NAS 1638, SAE AS 4059 revision E tables 1 & 2
• Moisture and temperature sensing (fluid dependent). Data logging and 4000 test result
  memory

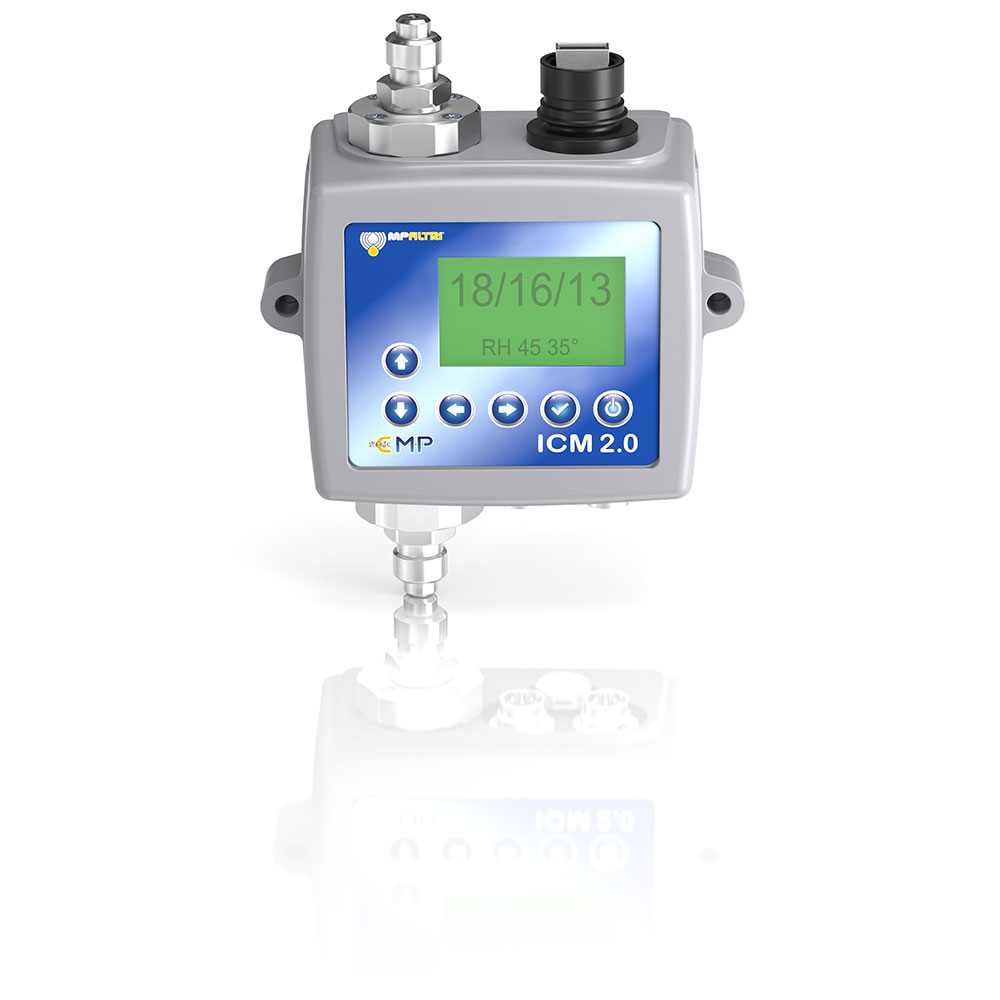

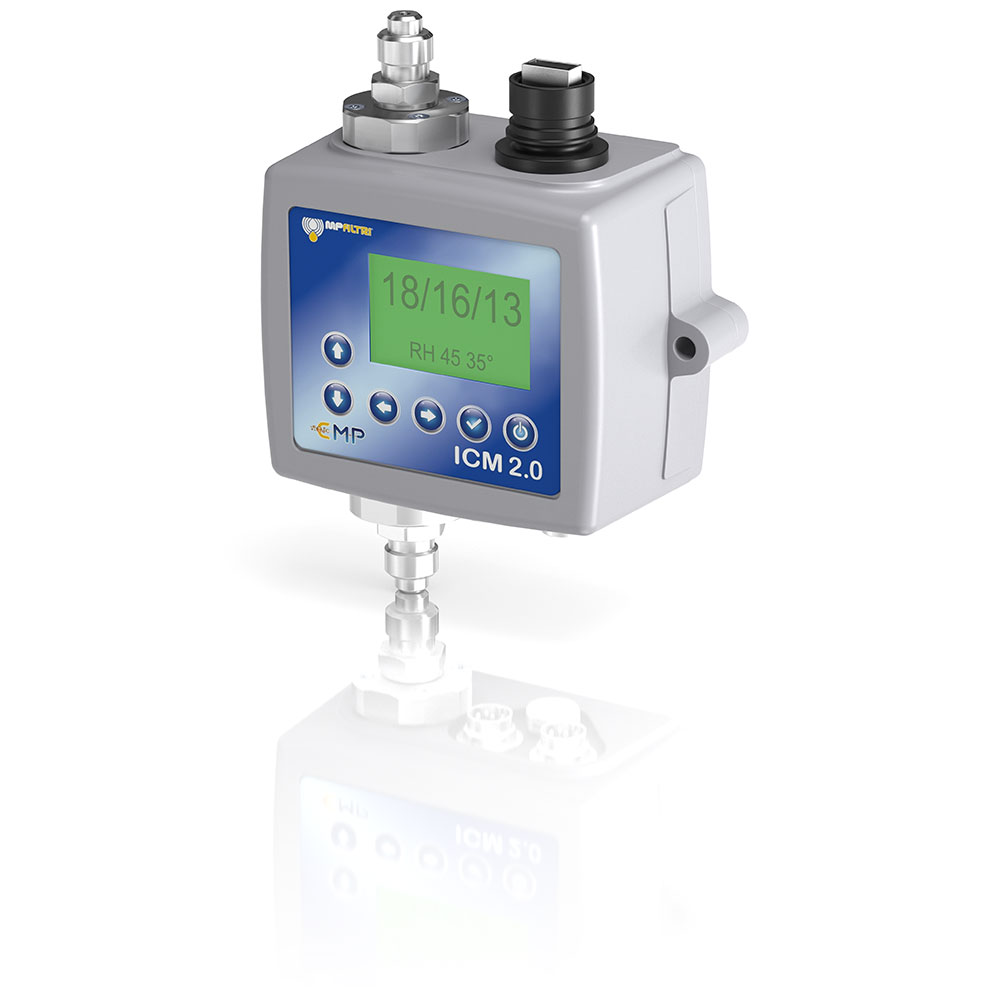

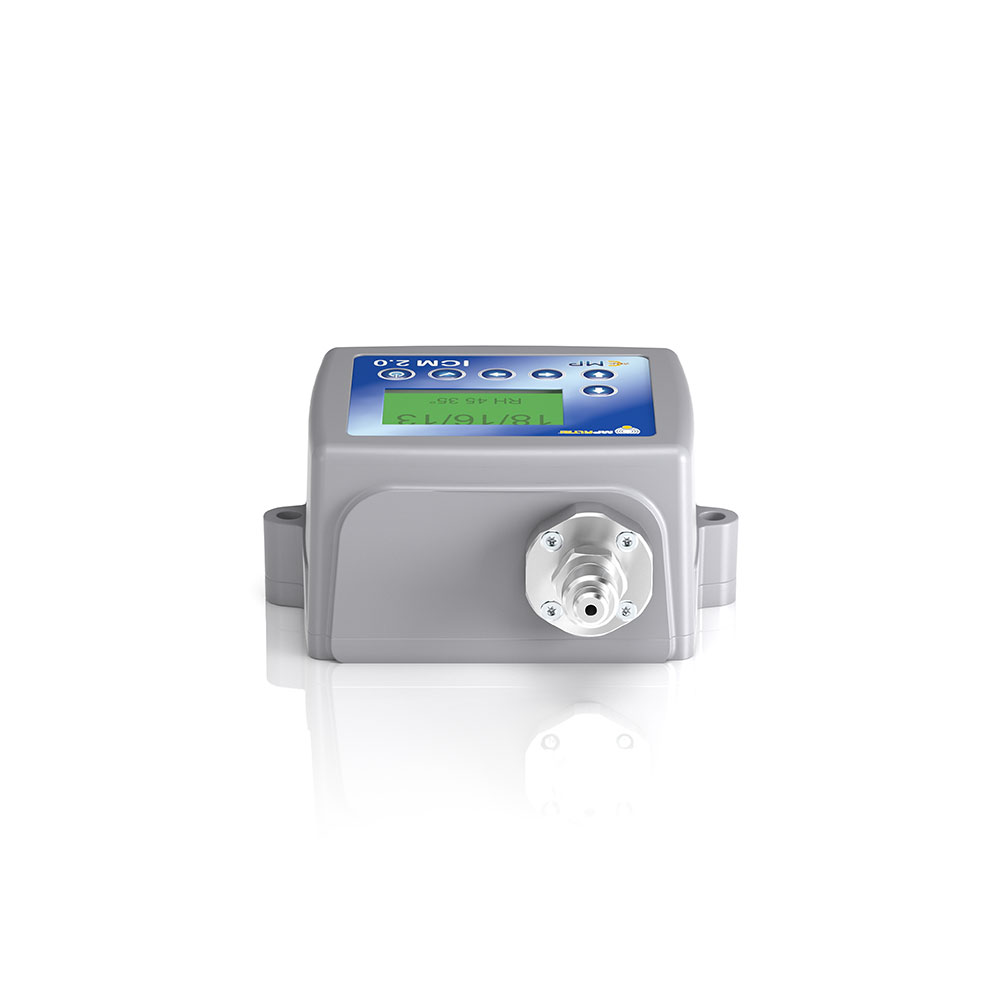

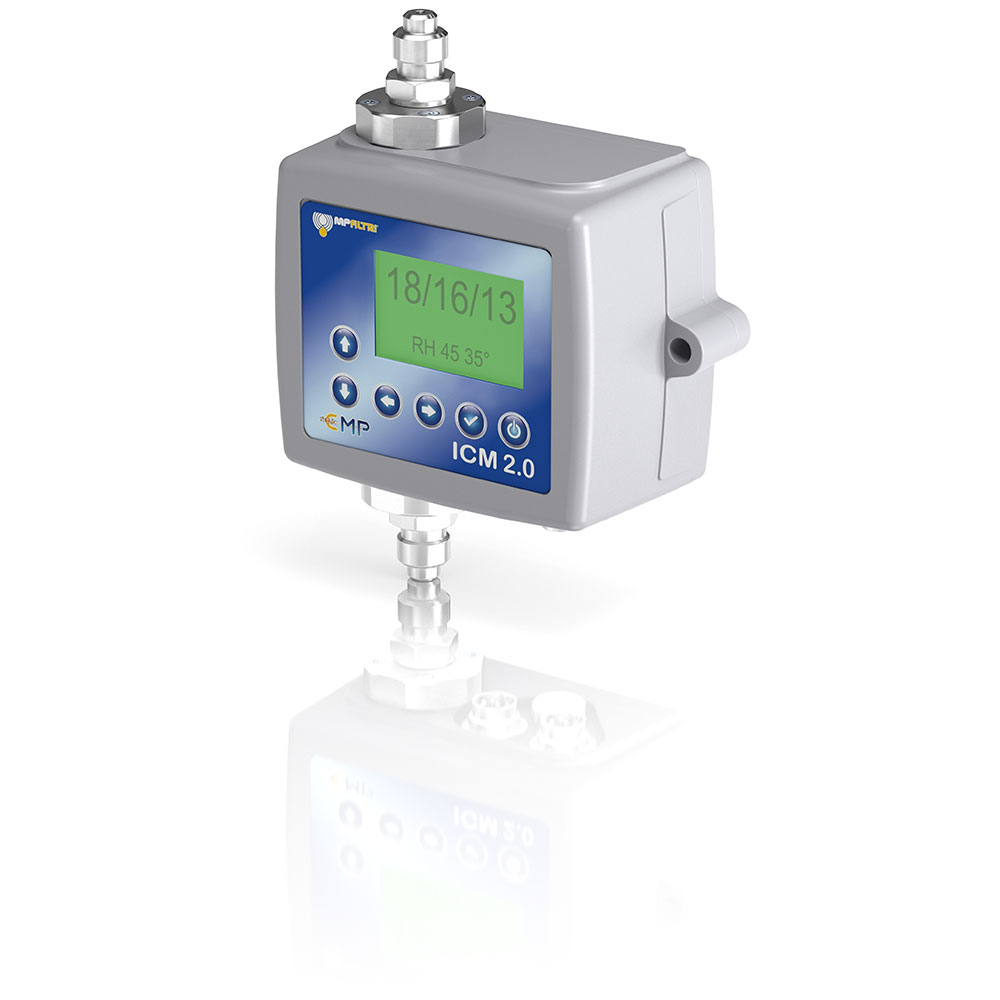

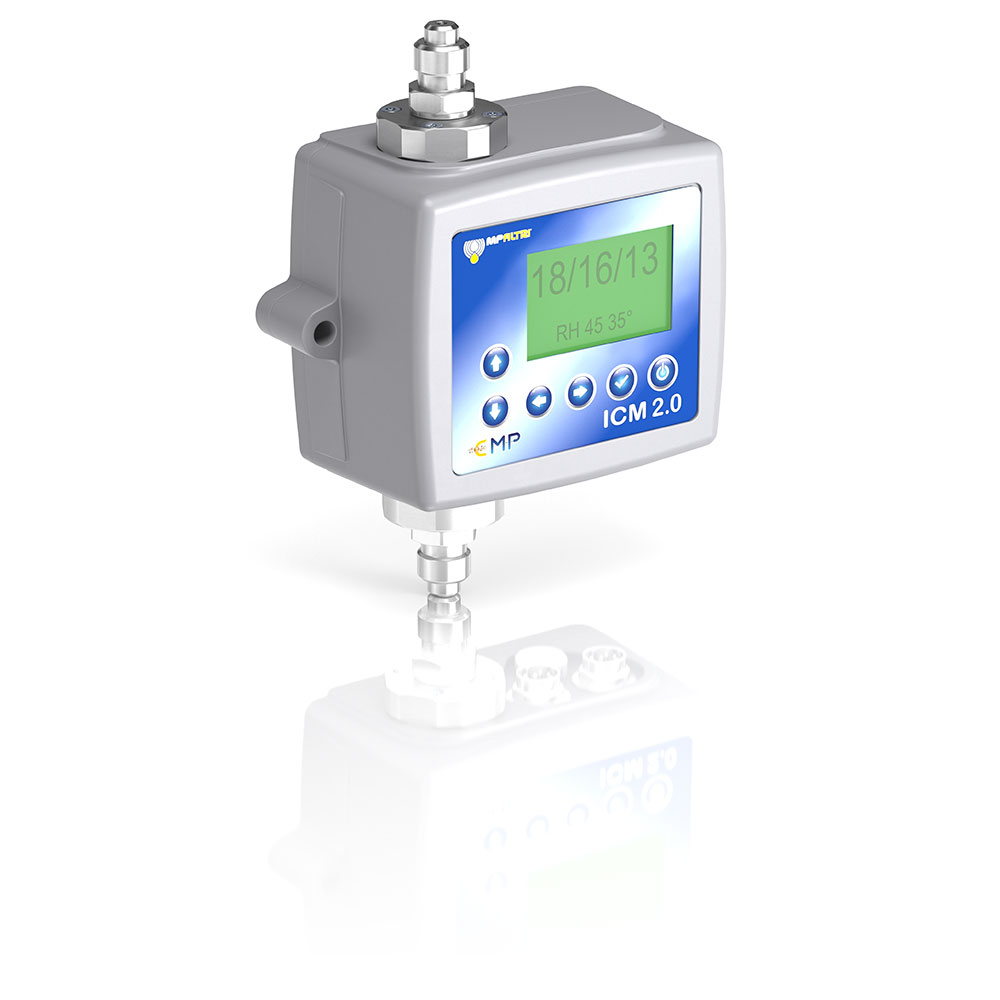

• Multicolor indicators via LCD (K versions) and LED with output alarm signals as standard
• Robust die cast aluminium construction
• Maximum operating pressure to 420 bar
• Environmental protection IP65/67 versatile

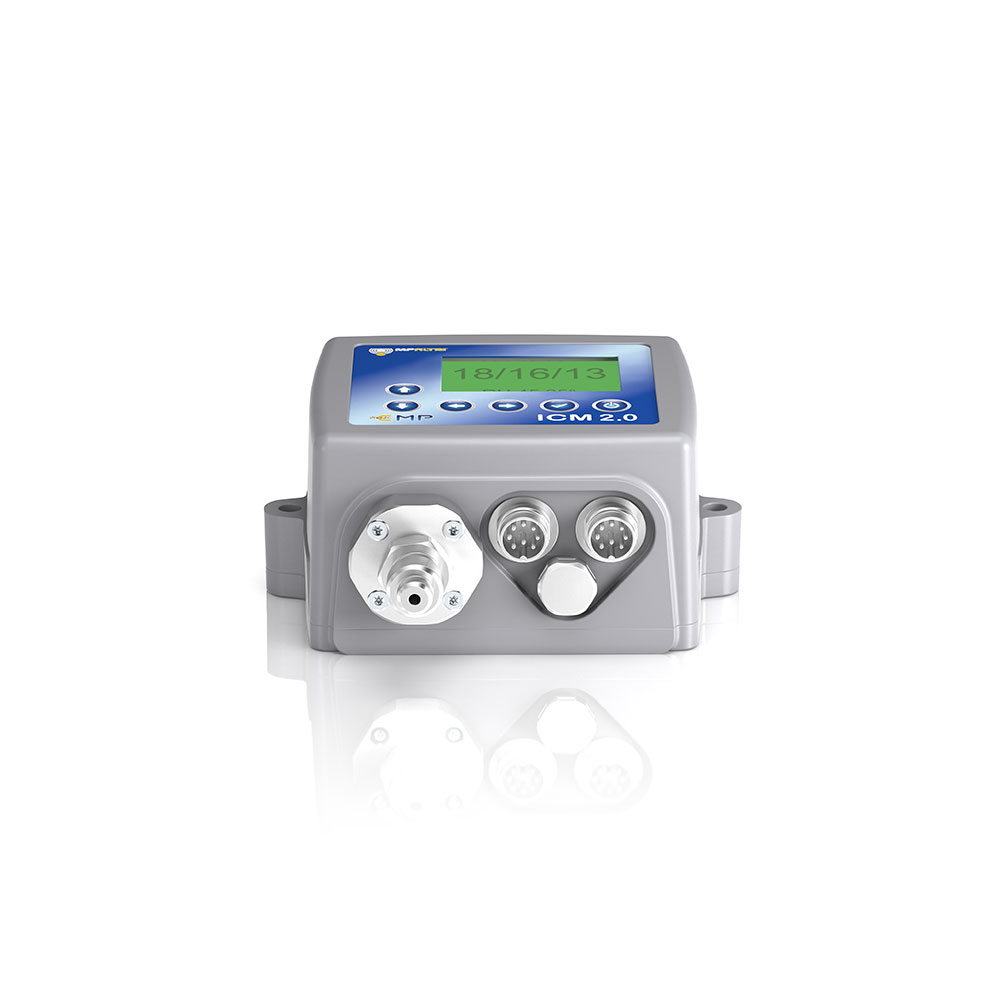

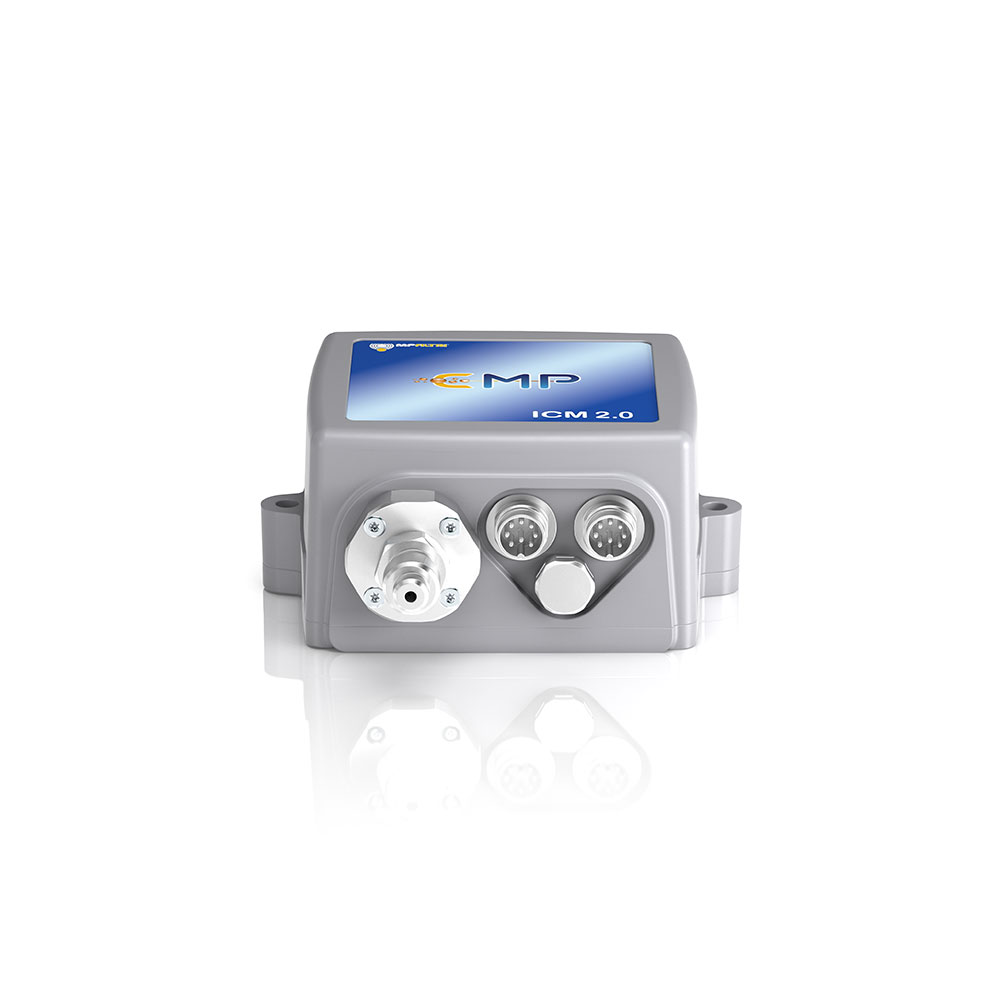

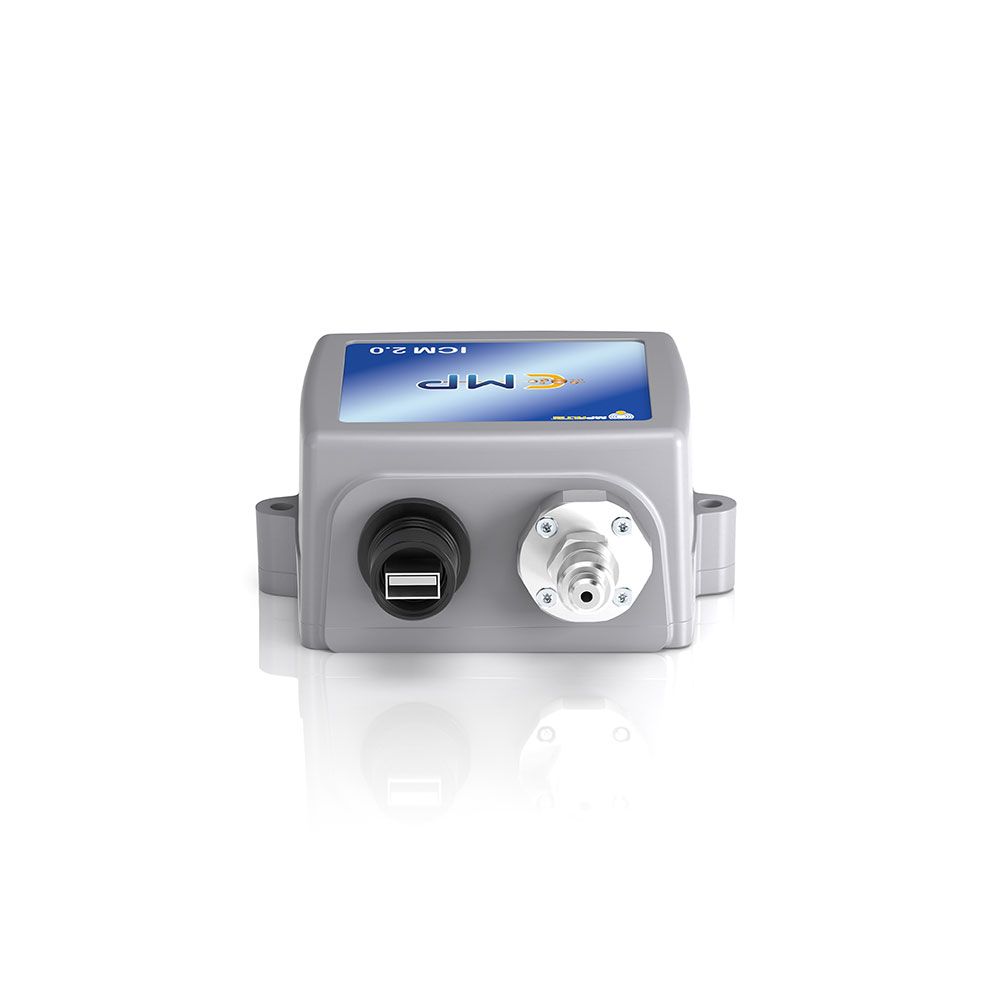

• Secondary connector to allow the simultaneous control/ download of results during
  operation
• Option available to download directly all results onto a USB stick. RS485, MODBUS,
  CANBUS, 4-20mA analogue output as standard
Particle sizing
>4, 6, 14, 21, 25, 38, 50, 70 μm(c) to ISO 4406
Standard analysis range
ISO 4406 Code 0 to 25
NAS 1638 Class 00 to 12
AS4059 Rev. E Table 1&2 Sizes A-F: 000 (Lower Limits are Test Time dependent)
Accuracy
± 1/2 code for 4,6,14 μm(c) ± 1 code for larger sizes
Viscosity
range ≤ 1000 cSt
Fluid temperature
From -25 °C to +80 °C
Ambient temperature
From -25 °C to +80 °C (non K version) From -25 °C to +55 °C (K version)
Temperature measurement
±3 °C
Pressure maximum
 420 bar
