ICU

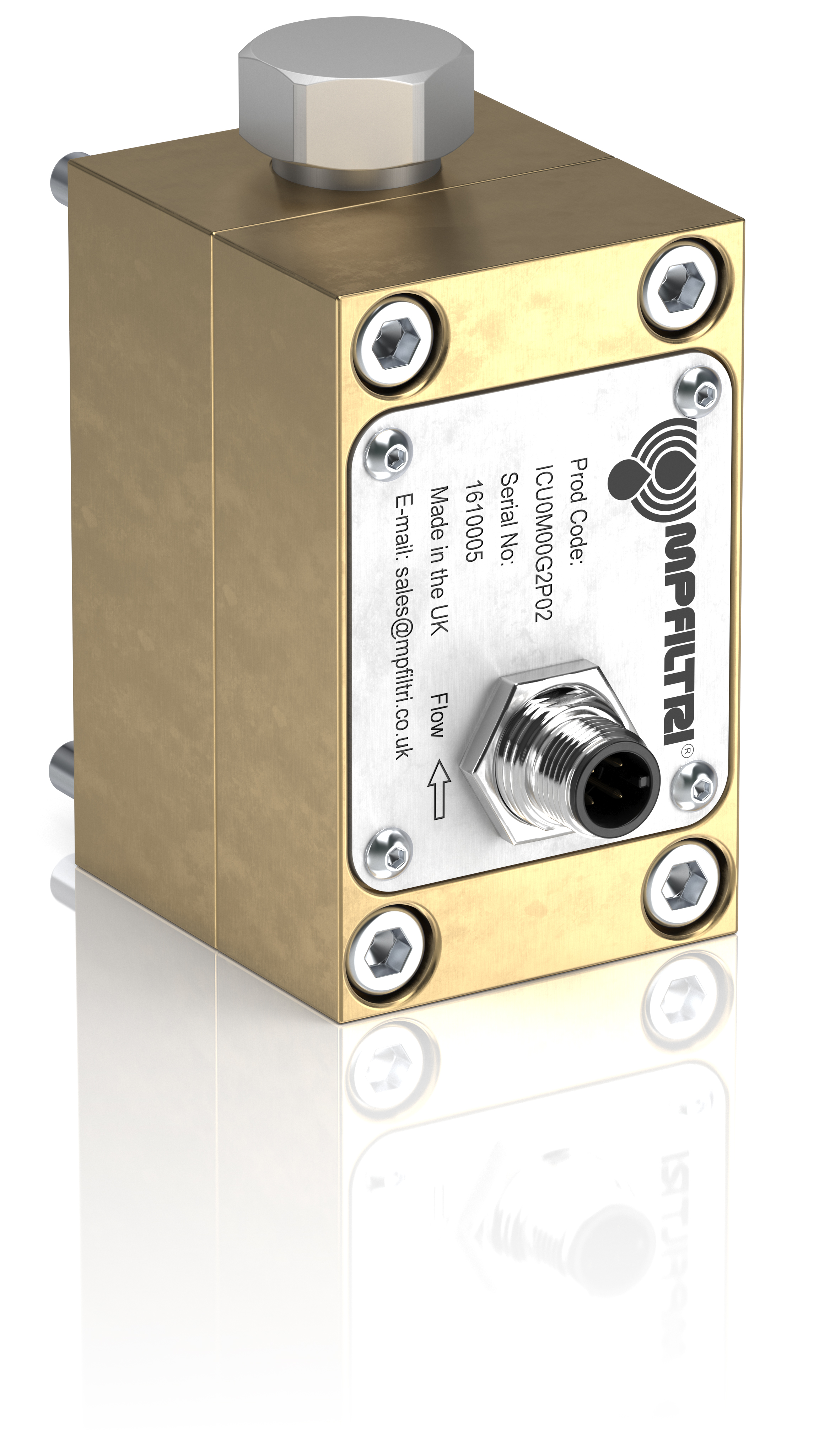

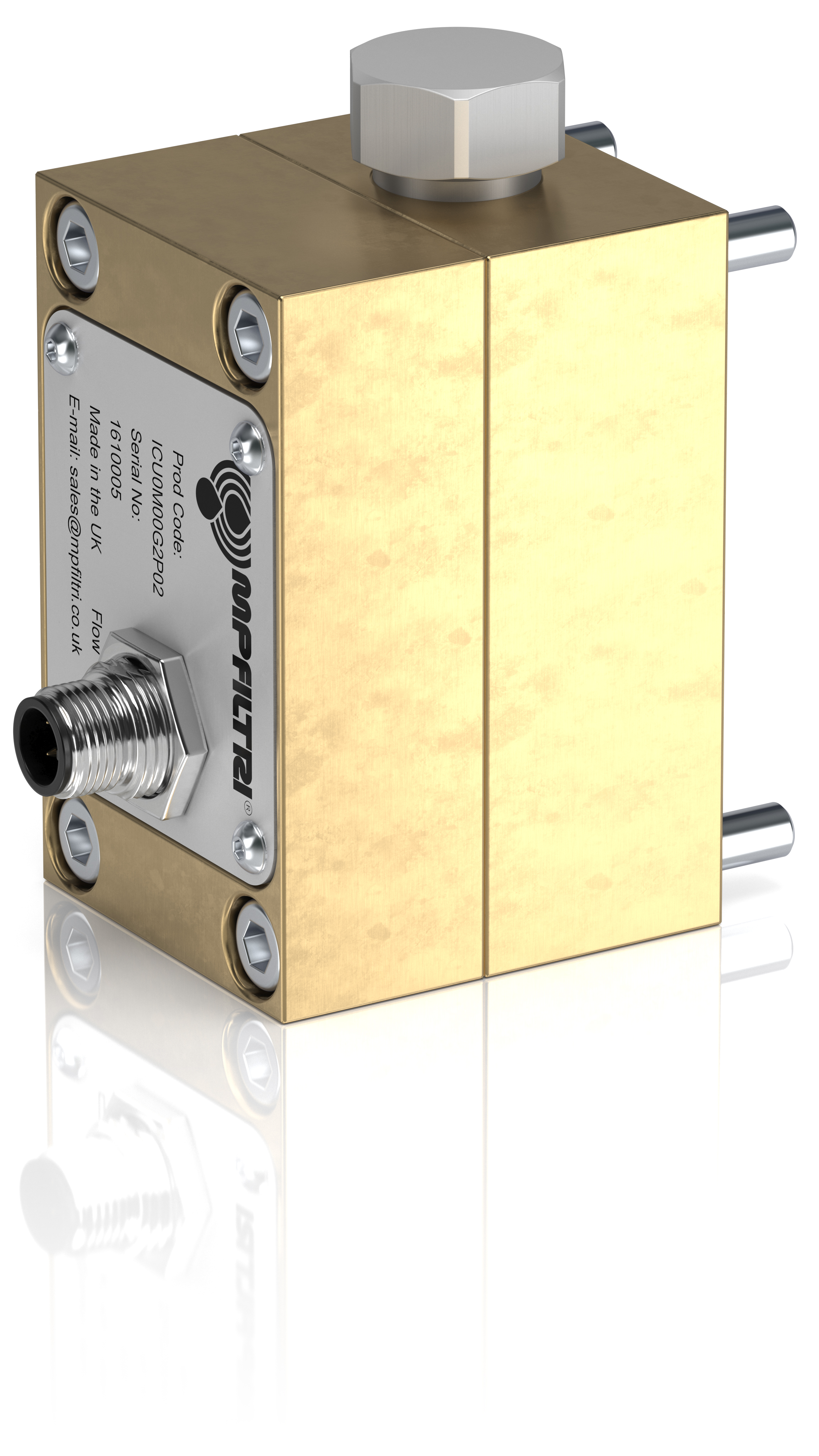

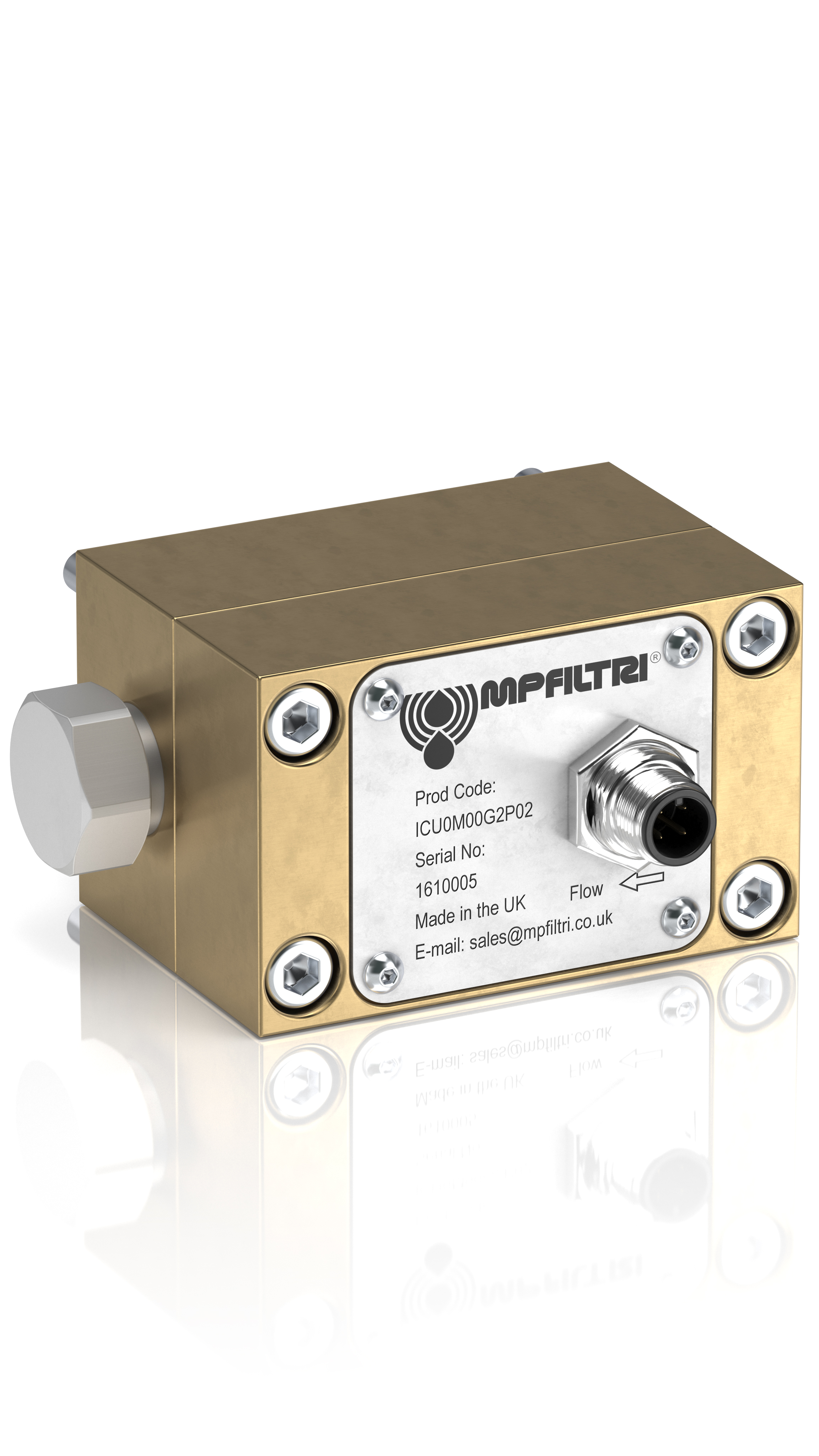

The ICU automatically measures particulate contamination levels in various hydraulic fluids and is designed for industrial applications. It is designed to be manifold mounded directly to systems, where ongoing measurement or analysis is required,and where space and costs are limited.

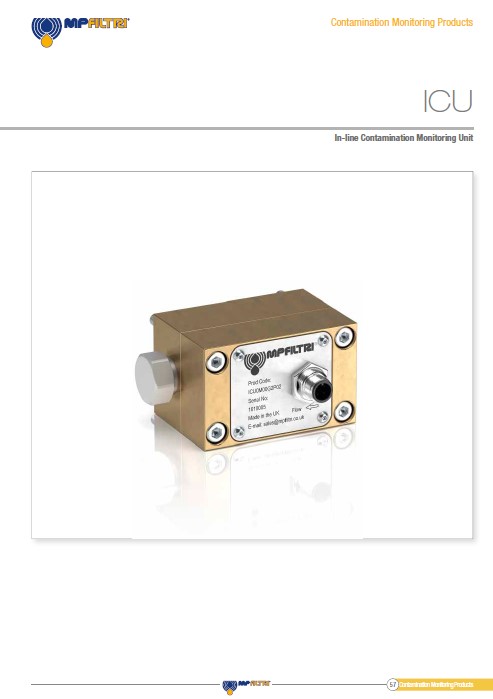

RECALIBRATION SERVICE   TECHNICAL BROCHURE
  • FEATURES & BENEFITS
  • TECHNICAL DATA
  • LITERATURE
• Manifold mounting
• 3-channel contamination measurement
• Live real-time monitoring
• Manual, automatic and remote control flexibility
• Provides critical early-warning system
• Protects complex systems
• Industry 4.0 ready
• Measures ISO 4406:2017
• Robust design and construction
• LPA View software (included)
• Pressure max. 350 bar
• Environmental protection IP65/67 versatile
• 4-20mA analogue output as standard
Particle sizing
>4, 6, 14 μm(c) to ISO 4406:2017
Standard analysis range
ISO 4406:2017 Code 0 to 20
Accuracy
± ½ code for 4,6,14 μm(c) across the analysis range
Viscosity
range ≤ 1000 cSt
Fluid temperature
From +25 °C to +80 °C
Ambient temperature
From 0 °C to +60 °C
Pressure
Minimum: 50 bar
Maximum: 350 bar
