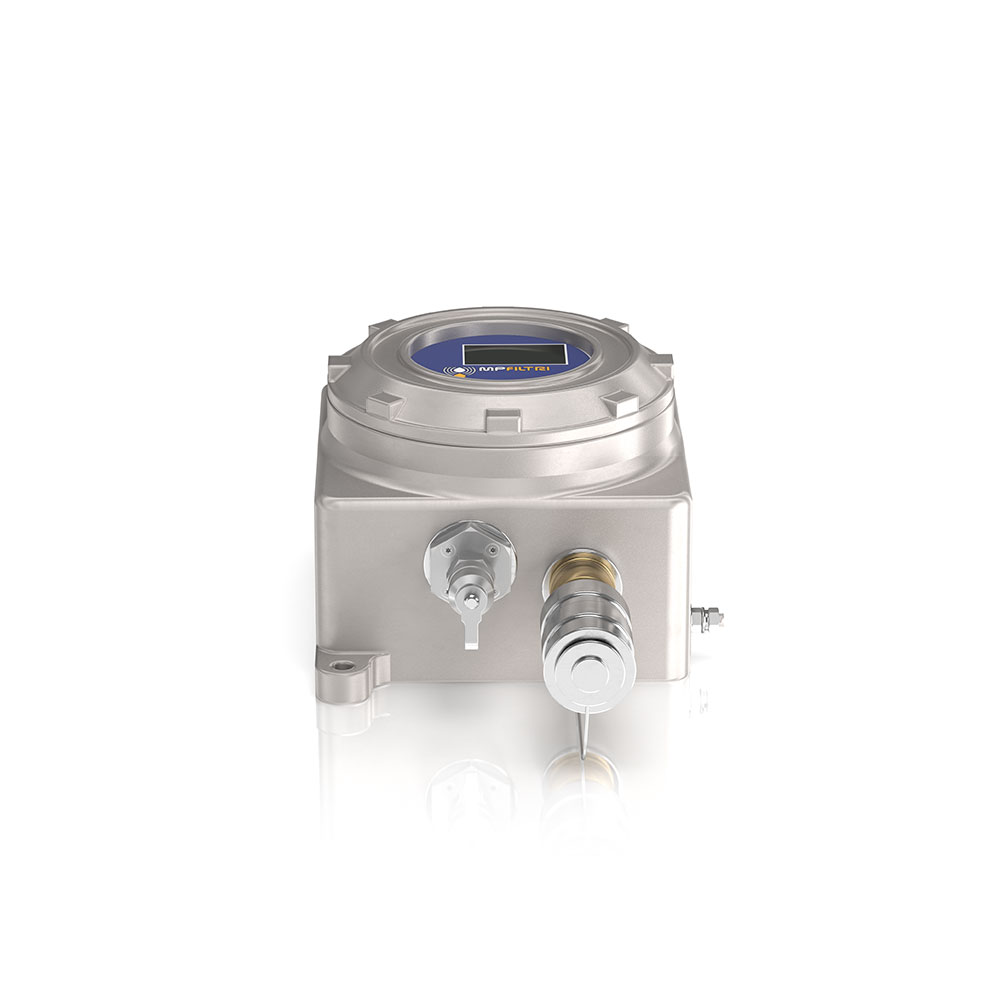

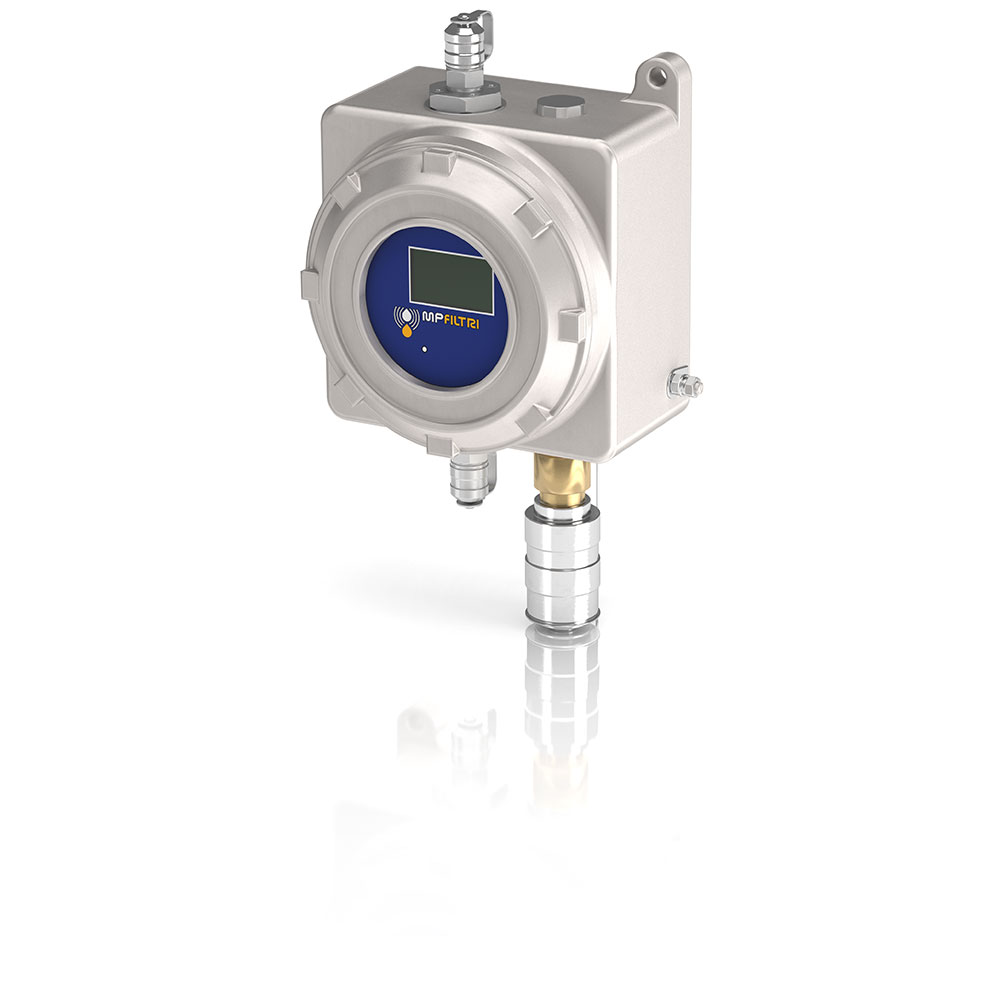

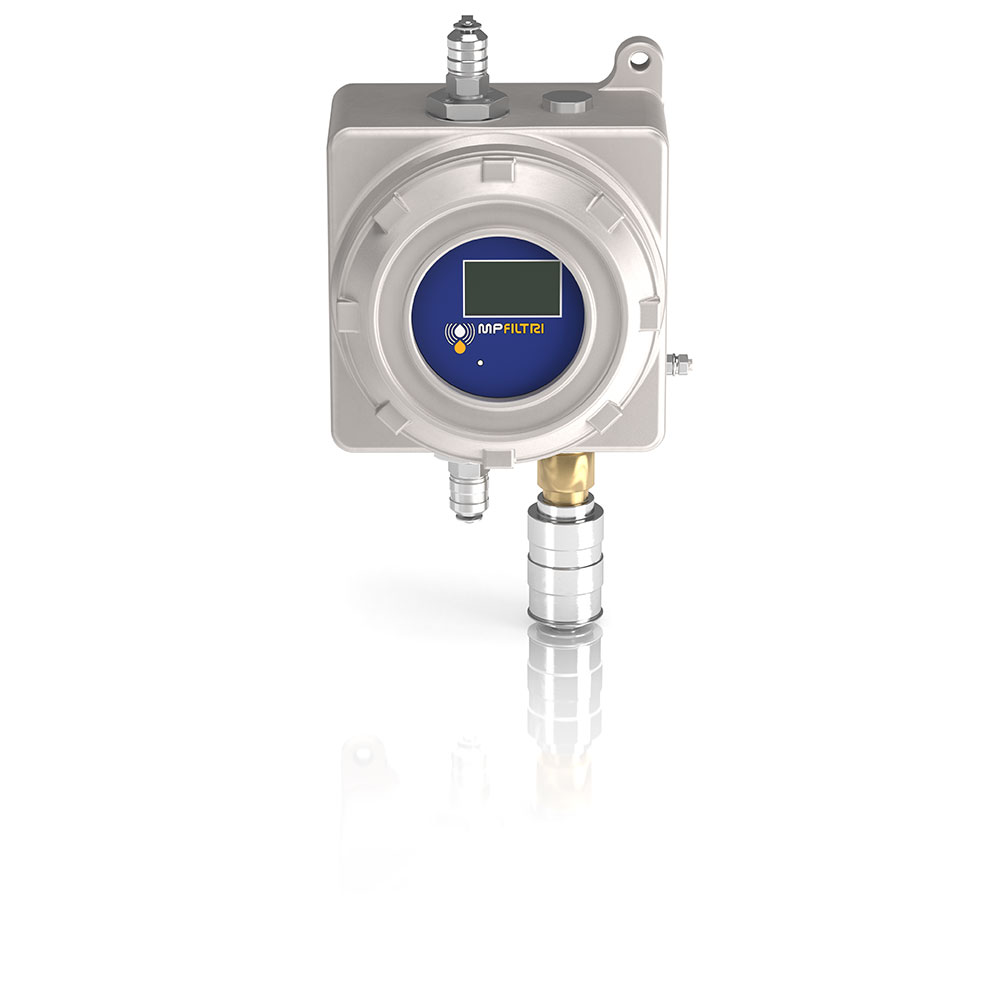

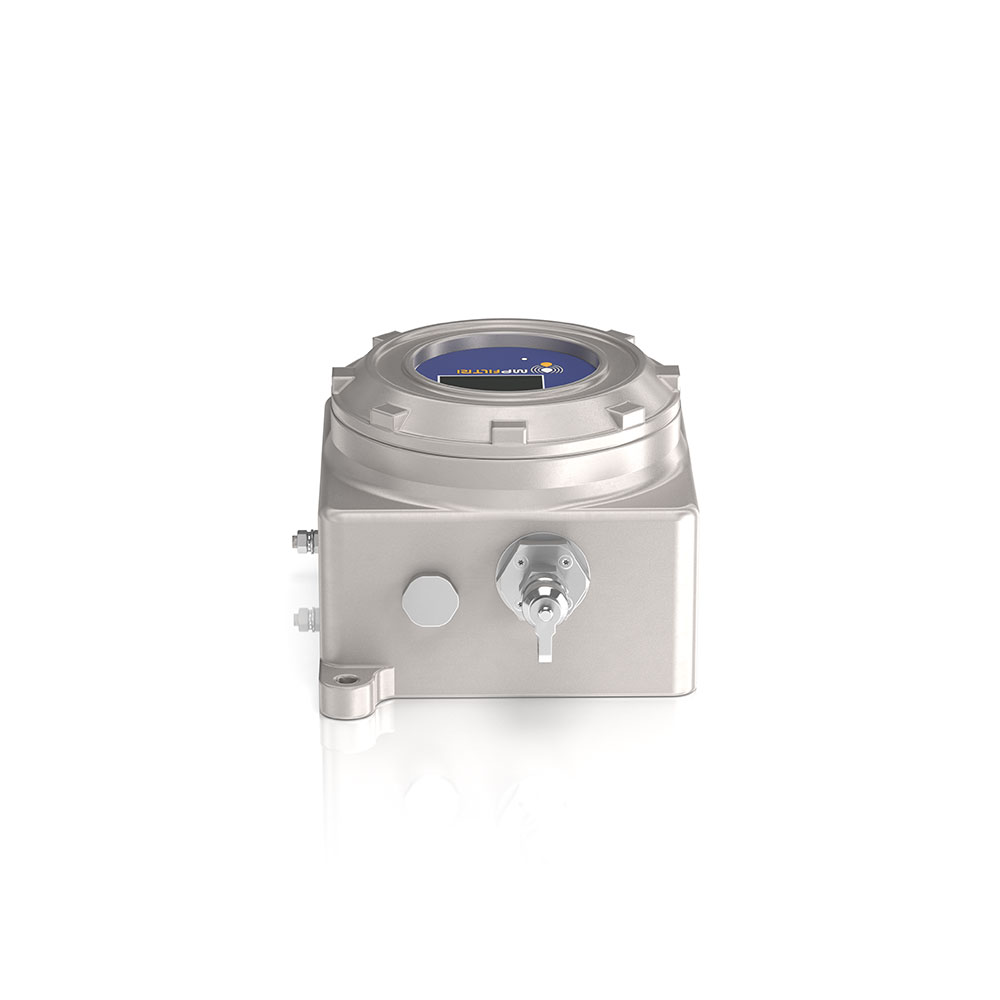

AZ2

Our AZ2 contamination monitor can automatically measure and save particulate contamination, moisture and temperature levels in various hydraulic fluids. They are designed specifically to be mounted directly to systems, where ongoing measurement or analysis is required, in high risk or explosive environments.

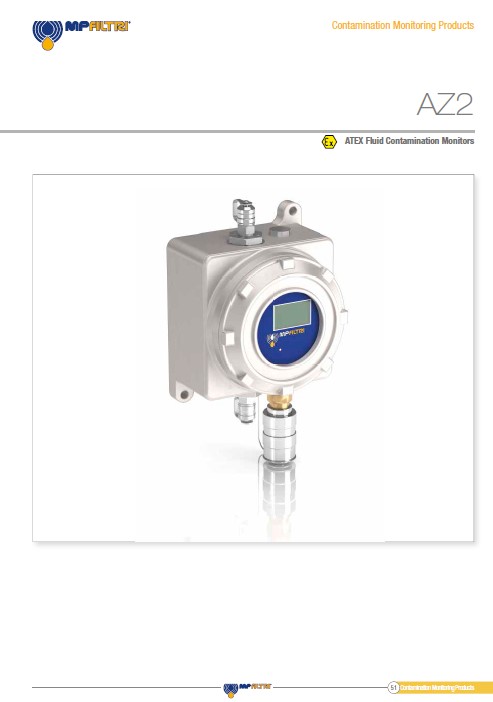

RECALIBRATION SERVICE   TECHNICAL BROCHURE
  • FEATURES & BENEFITS
  • TECHNICAL DATA
  • LITERATURE
• Calibrated to relevant ISO standards
• Manual, automatic and remote control flexibility
• Various communication protocols as standard inc. RS485, MODBUS, CANBUS
• ATEX zone II Cat. 3G.
• FREE LPA View Windows based software.
• 8 channel contamination measurement & display
• Measures and displays the following international standard formats; ISO 4406,
  NAS 1638, SAE AS 4059 revision E tables 1 & 2
• Moisture and temperature sensing (fluid dependent)
• Data logging and 4000 test result memory
• Multicolour indicators via LED with output alarm signals as standard
• Robust die cast stainless steel construction
• Pressure max. 400 bar
• Environmental protection IP66
Particle sizing
>4, 6, 14, 21, 25, 38, 50, 70 μm(c) to ISO 4406:2017 S
tandard analysis range
ISO 4406 Code 0 to 25
NAS 1638 Class 00 to 12
AS4059 Rev. E Table 1&2 Sizes A-F: 000 to 12 ISO 11218 00-12 (Lower Limits are Test Time dependent)
Accuracy
± ½ code for 4,6,14μm(c) } 1 code for larger sizes
Viscosity
range ≤ 1000 cSt
Fluid temperature
From -25 °C to +80 °C
Ambient temperature
From -25 °C to +80 °C
Temperature measurement
± 3 °C%
Pressure maximum
400 bar (for high frequency pressure pulse and out range temperature applications contact MP Filtri)
