GRF 261

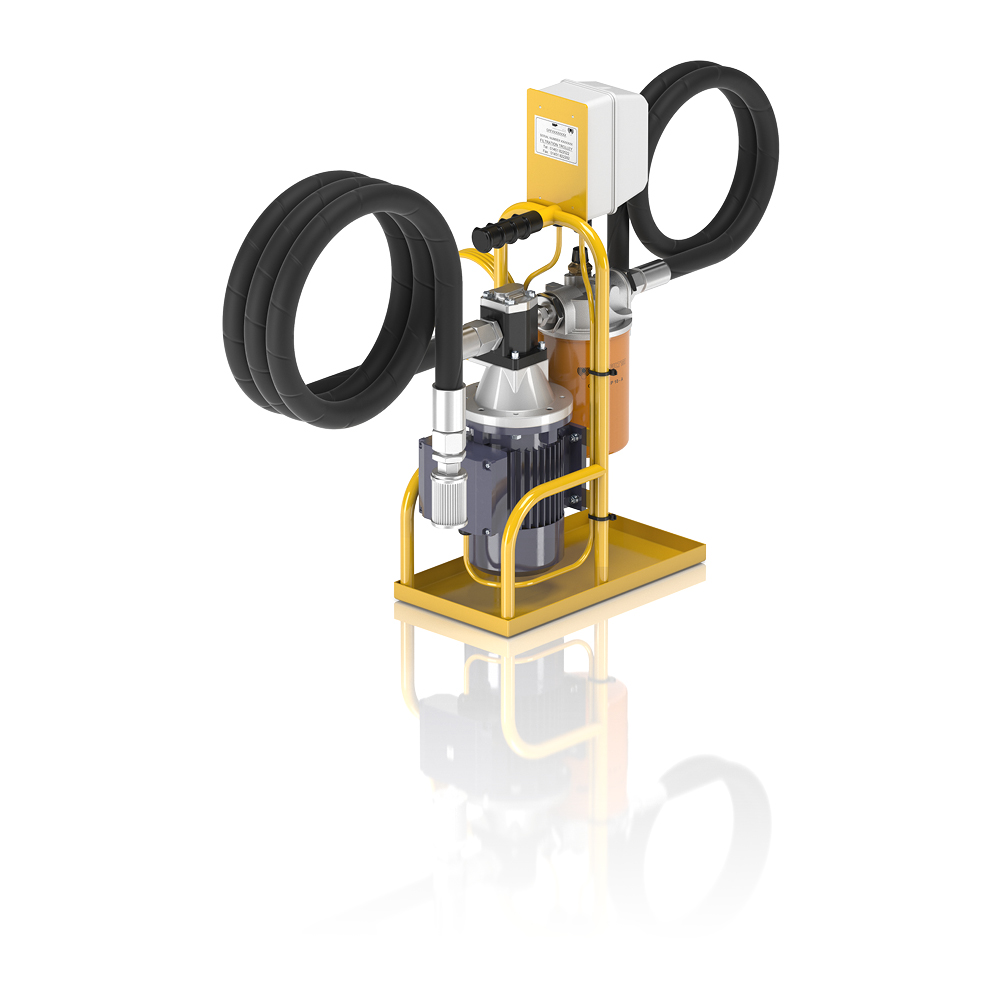

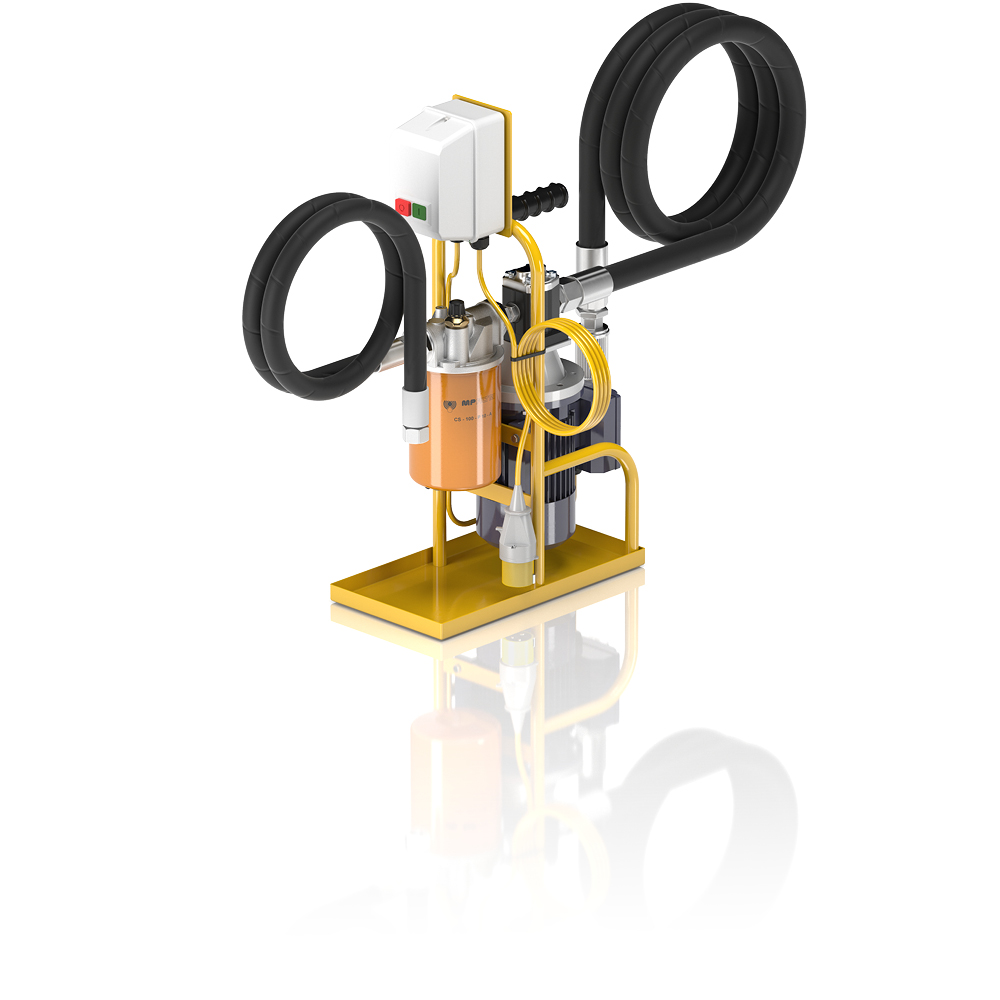

Created for filling and refilling filtered hydraulic fluids and lubrication tanks. The filter unit, connected off-line to the tank, can be used as a support to the filtration plant on start-up for fast flushing action, or as additional filtration for systems with a high incidence of contamination. Light and compact.

 3D DOWNLOAD   TECHNICAL BROCHURE
  • FEATURES & BENEFITS
  • TECHNICAL DATA
• 26 L/min Flow rate
• Continuous operation at 5 bar
• Light and portable
• Fast clean-up times
• Compact design
• Quick and easy to set up
• High-efficiency filtration
• Easy to maintain
• Comes with MPS100 filter head filters as standard
• Water removal (optional element)
• Compatible with Mineral Oil
• Electric control box
• Visual indicator
• Nitrile seals

Pump
Gear Pump
Electric motor
0.55 Kw 110/230 Volt single phase electric motor
Flow Rate
26 L/min
Max operating pressure
5 bar
Viscosity range
Min. operation 10 cSt
Max. operation 120 cSt
Inlet filter
250 μm metal mesh strainer
Outlet filter
1/3/6/10/25 μm ß>1000 flow through the element Out/In
Bypass indicator set at 1.75bar
Visual clogging indicator gauge pop-up, manual reset.
Fluid temperature
From 0° to +80°C
Ambient temperature
From 0° to +45°C
Protection class
IP 55
Seal
NBR
Fluid compatibility
Mineral oil
Suction / Pressure hose
SAE100R4 1” swaged female 2000mm hose SAE100R4 3/4” swaged female 2000mm hose
Dimensions
Weight: 18kg Dimensions: 697mm (H); 400mm (D); 215mm(W)
