UFM 181

• The UFM181 is a mobile transfer and filtration unit for very large volumes (1,800/2,700lt)
• Easy to handle thanks to the use of four wheels and an ergonomic handle
• Use an LMP filter series with increased length
• Flow rate 180 l/min
• Max working pressure 10bar
• Three-phase electric motor
• Available with online contamination monitoring (ICM2.0)

• Four (4) wheels and integrated handle for handling
• Easy to use
• Screw pump for high flow rates and the lowest noise level
• Easy maintenance thanks to the LMP filter series
• Suction filter to protect the pump
• LMP filter length 6 for a greater filtering surface
• Absolute filtration. Wide selection of filter media
• Version with three-phase motor for continuous and prolonged use
• Electric differential gauge plus pressure gauge to monitor the pressure in the line
• New ICM2.0 series particle counter with integrated second motor pump unit.

Water Removal
Product range

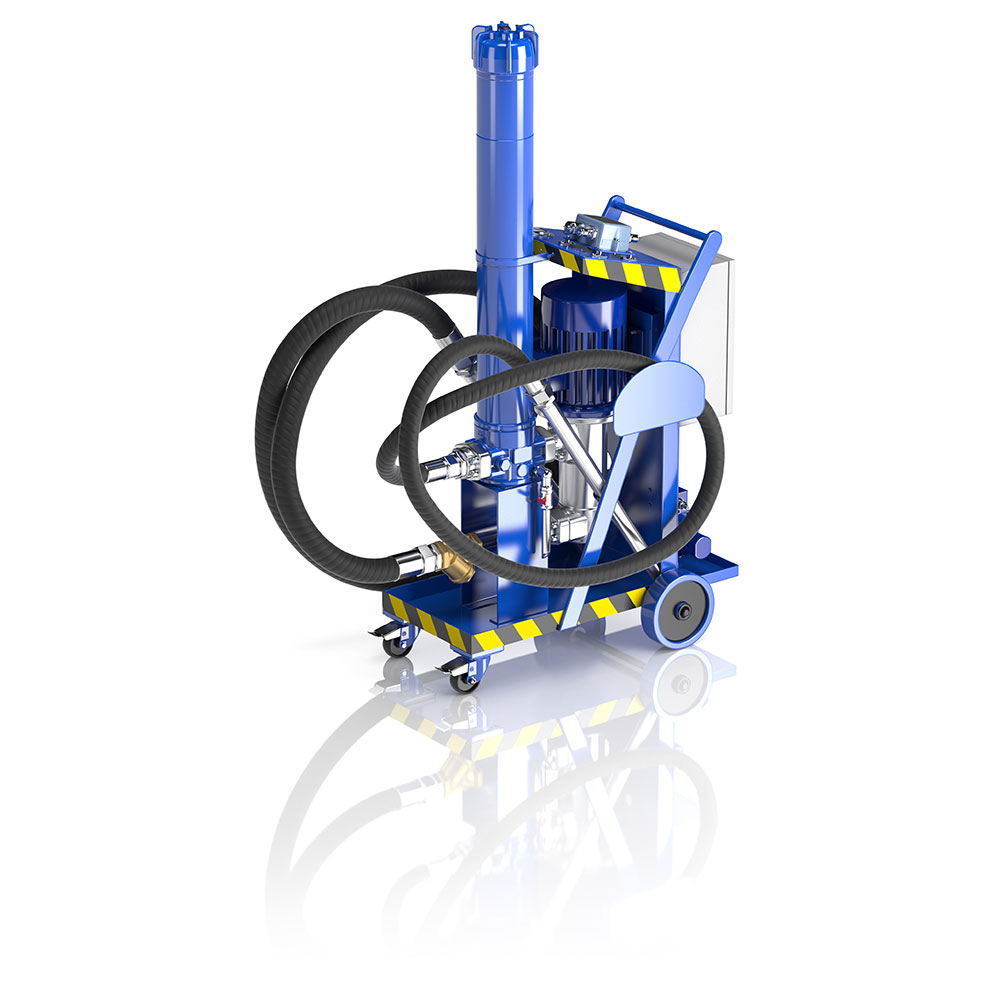

UFM181 mobile filtration unit
Mobile Filtration Units

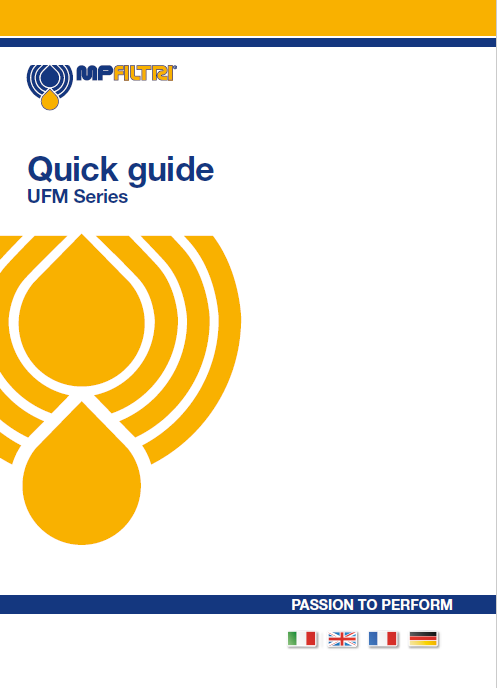

Quick Guide UFM
UFM 181 series Use and Maintenance Manual - Mobile transfer and Filtration unit
