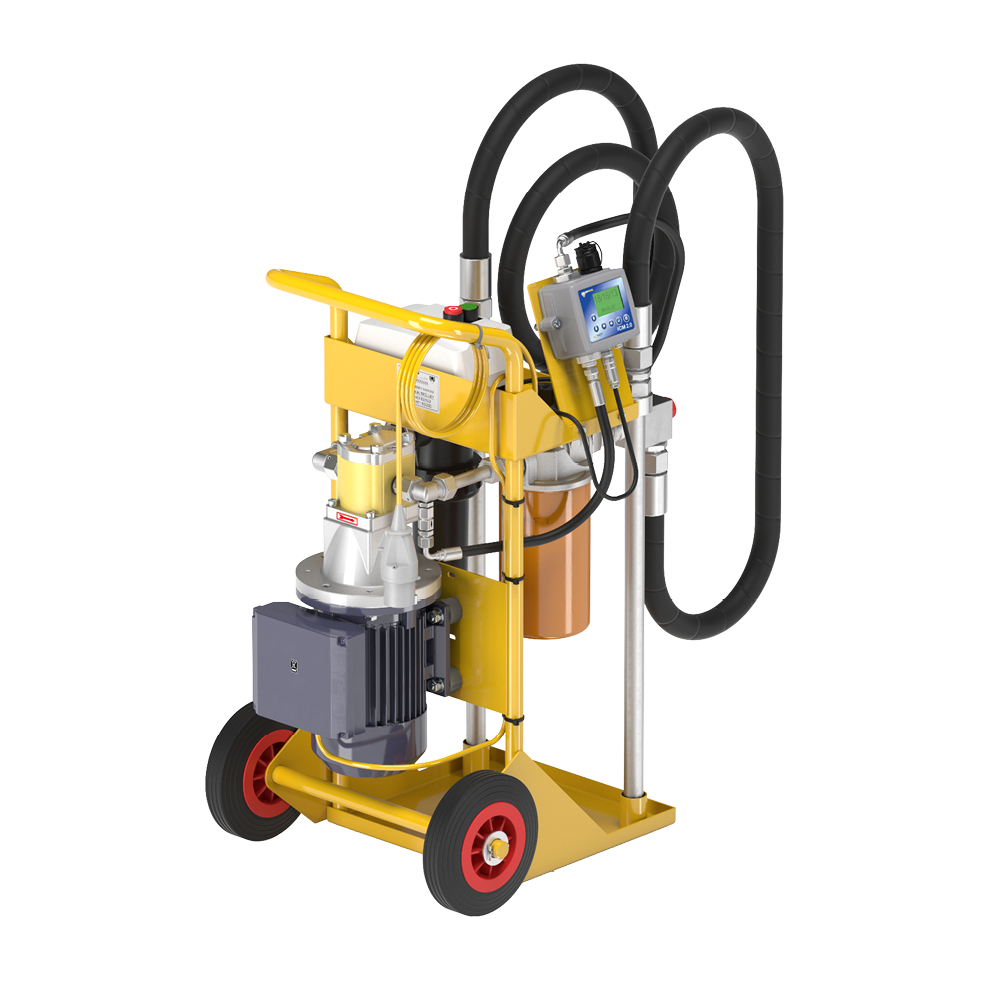

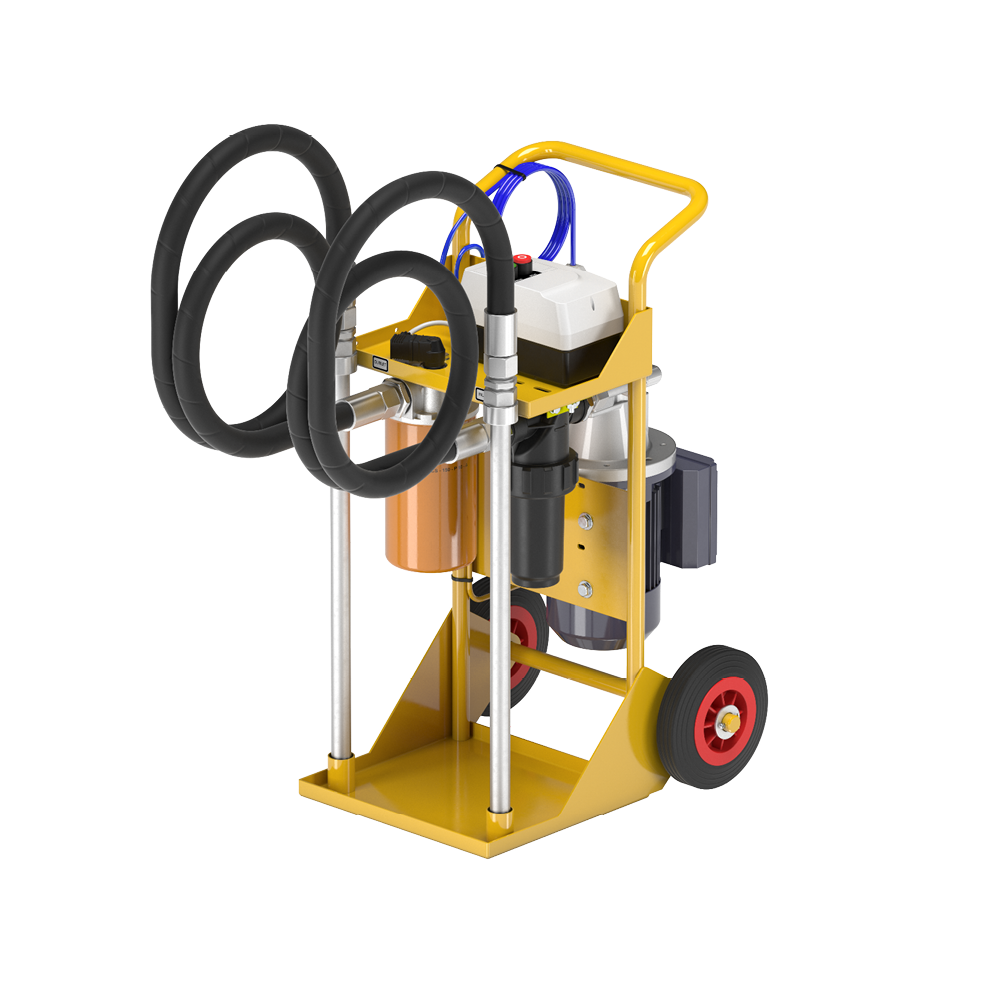

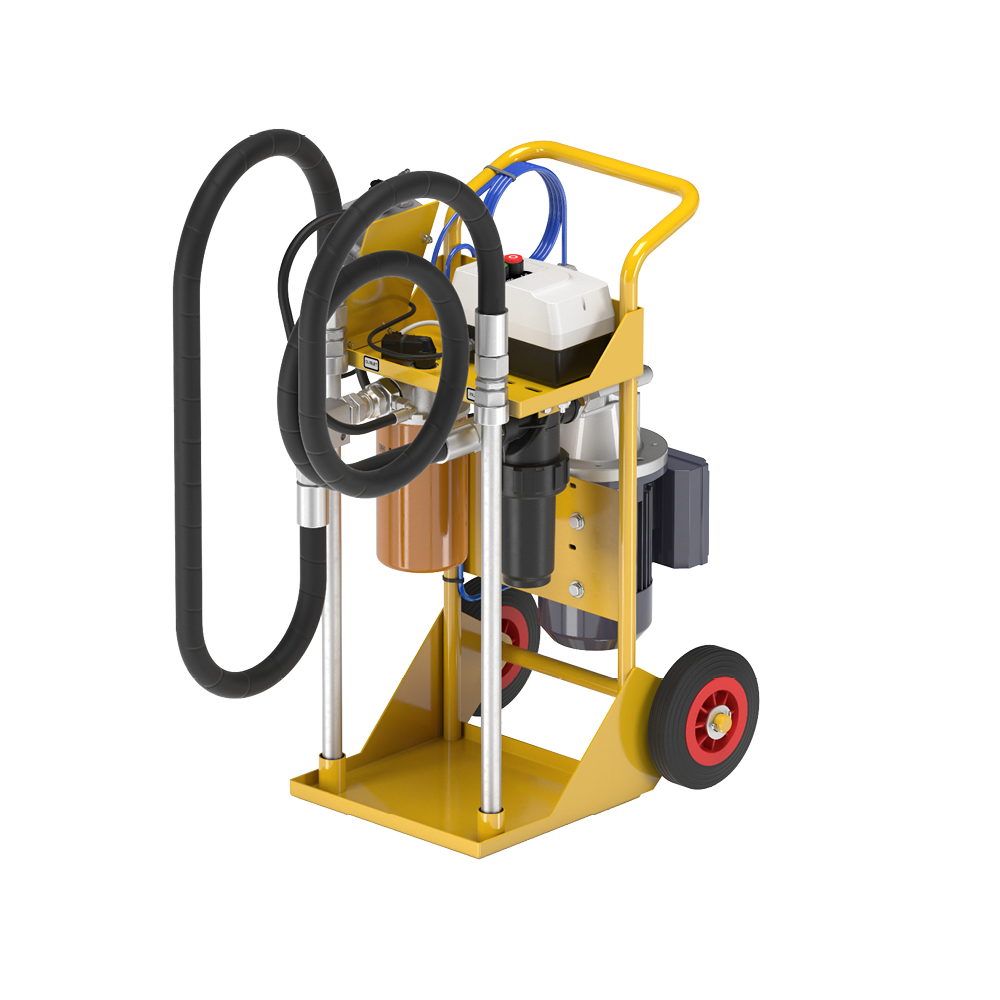

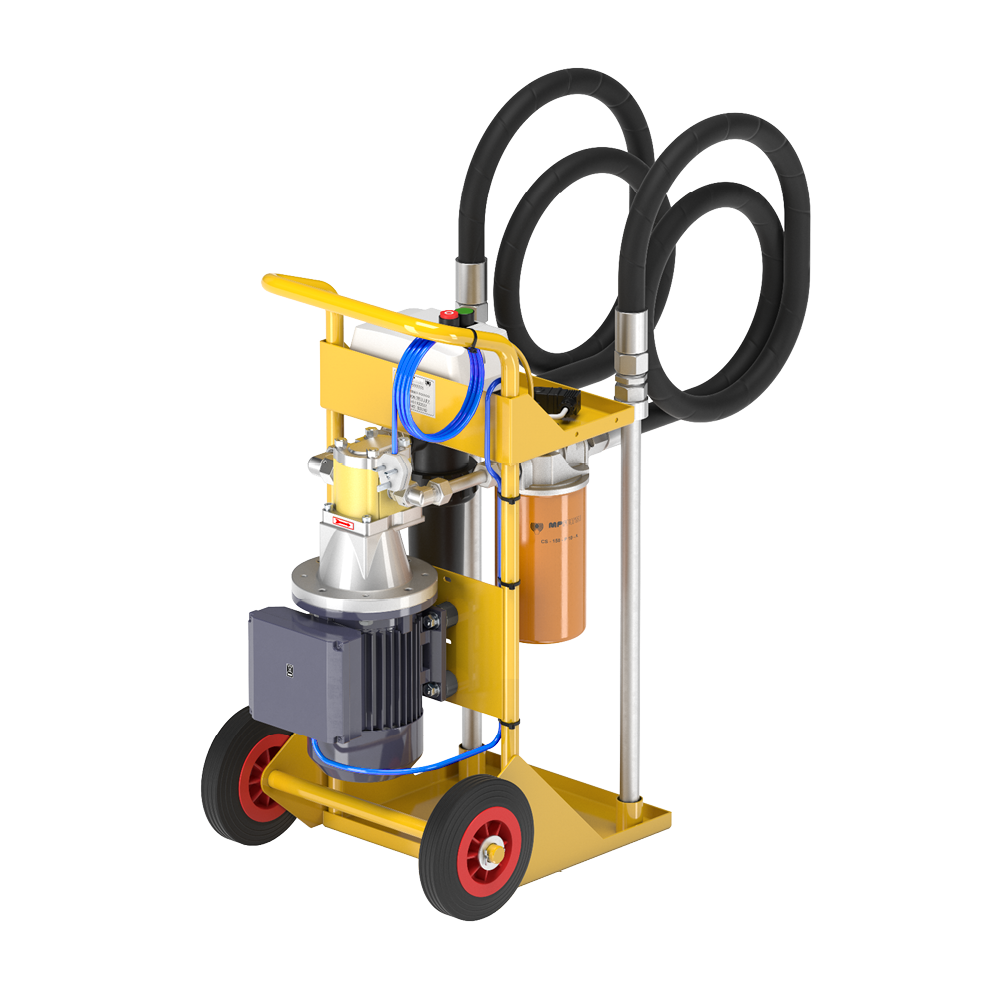

GRF 302 / GRM 302

 3D DOWNLOAD   TECHNICAL BROCHURE
  • FEATURES & BENEFITS
  • TECHNICAL DATA
• Available with ICM 2.0 In-line Contamination Monitor
• 30 L/min Flow rate
• Continuous operation at 3.5 bar
• Compact size
• Comes with MPS100 filter as standard – option for LMP4305 filter to be fitted Water
  removal (optional element)
• Compatible with Mineral Oil
• Electric control box
• Calibrated to relevant ISO standards (GRM only)
• Electric control box
• Visual electrical indicator
• Nitrile seals
• ICM included for real-time monitoring (GRM only)
• Data logging and storage of up to 4000 test memory results (GRM only)


Pump
Gear Pump or Screw Pump (for diesel)
Electric motor
0.75 Kw, 1400rpm, 110V/240V single phase, 415V three-phase
Flow rate
30 L/min
Max operating pressure
3.5 bar
Viscosity range
Max. operation 150 cSt Inlet Filter 100 mesh washable as standard Outlet Filter 1/3/6/10/25 μm ß>1000 flow through the element Out/In Bypass Indicator set at 1.75bar Rating 3.5 bar with bypass (LMP) 1.75 bar bypass (MPS) Visual/electrical indicator (on LMP) set at 2 bar
Fluid temperature
From -10° to +80°C
Ambient temperature
From 0° to +45°C Protection Class IP 55 Seal NBR
Fluid compatibility
Mineral oil and diesel oil variants
Suction / Pressure hose
SAE100R4 1” swaged female 2000mm hose - available with lances Dimensions GRF - 75kg, 860mm (H); 560mm (D); 500mm(W) / GRM - 80kg, 860mm (H); 560mm (D); 500mm (W)
Equipment
ICM 2.0 Version available (GRM Models)
